Pilot Rock RJ Thomas Mfg. Co.

FSW/SL-30 SNOW LOAD Rated Swivel Grate Campfire Ring

Please make the following configuration choices:

Campfire Ring Side Heights

Choose your campfire ring side height.

($200.00)
($232.00)
($251.00)

Campfire Ring Anchor Systems

Choose your desired anchor system configuration

($20.00)
($17.00)

Campfire Ring Shelf Options

($17.00)

Model FSW/SL-30 campfire ring is tested to withstand snow loads of over 569 lbs. per sq. ft. on the grate. The swivel grate is laser cut from 1/4-inch thick steel plate. A special 10 ga. channel brace is welded inside the ring to reinforce the swivel tube. This Swivel Grate design meets the ADA guidelines for one hand operation and requires less than 5 lbs. of force to move. The 300 sq. in. single level grate will move 180 degrees – from over the fire to completely out of the fire ring – for easy fire building and serving. The handle is never over the fire. The 5/8-inch dia. operator handle is welded on and includes a 1/8" x 1/2" flat bar coiled grip. All fire ring components are finished with a high temp non toxic black enamel paint.

FSW/SL Series fire rings include tip back anchor pins (/TB) to keep the campfire ring secured in one place, but allow the fire ring to tip up for easy clean out.  These pins must be set in concrete. The firering can be tipped up.

OPTIONAL Anchor Systems:
Angle Spade Anchors (/AL) are 3 spades attached around the firering and buried in the ground. The firering cannot be tipped up.

Tip Back Spade Anchors (/TA) are 2 spades at the rear hinge point and buried in the ground. The firering can be tipped up.

Tip Back-Bolt Down Anchor Bracket (/TB-BD): this steel bracket will anchor your firering already equipped with tip back tabs (FA-30, FS-30, FSW-30, FSW/SL-30, FX-30 and L-32 series only) to an existing concrete surface. The firering will be able to tip up. The TB-BD bracket includes fasteners to attach it to the firering tabs. It does NOT include the (3) ½-inch diameter anchor bolts.
(Note: We do not recommend installation on top of concrete. But if you choose to install your firering on concrete the TB-BD anchor will secure the firering onto your concrete base.)


OPTIONAL: Model S-5 Bolt-on Utility Shelf

 California's Proposition 65.

You May Also Like

Lantern Poles
 Model LH-1 - Lantern Holder With 90 Degree Arm
Model LH-1 - Lantern Holder With 90 Degree Arm
SKW: LH
Safely hang camping lanterns. Available with Wheelchair Accessible Option.
Utility Tables
Model ULT-1 Utility Table
Model ULT-1 Utility Table
SKW: ULT-1::
18" x 30" table on a single embedded or surface mount pedestal.
Picnic Tables - Snow Load Rated

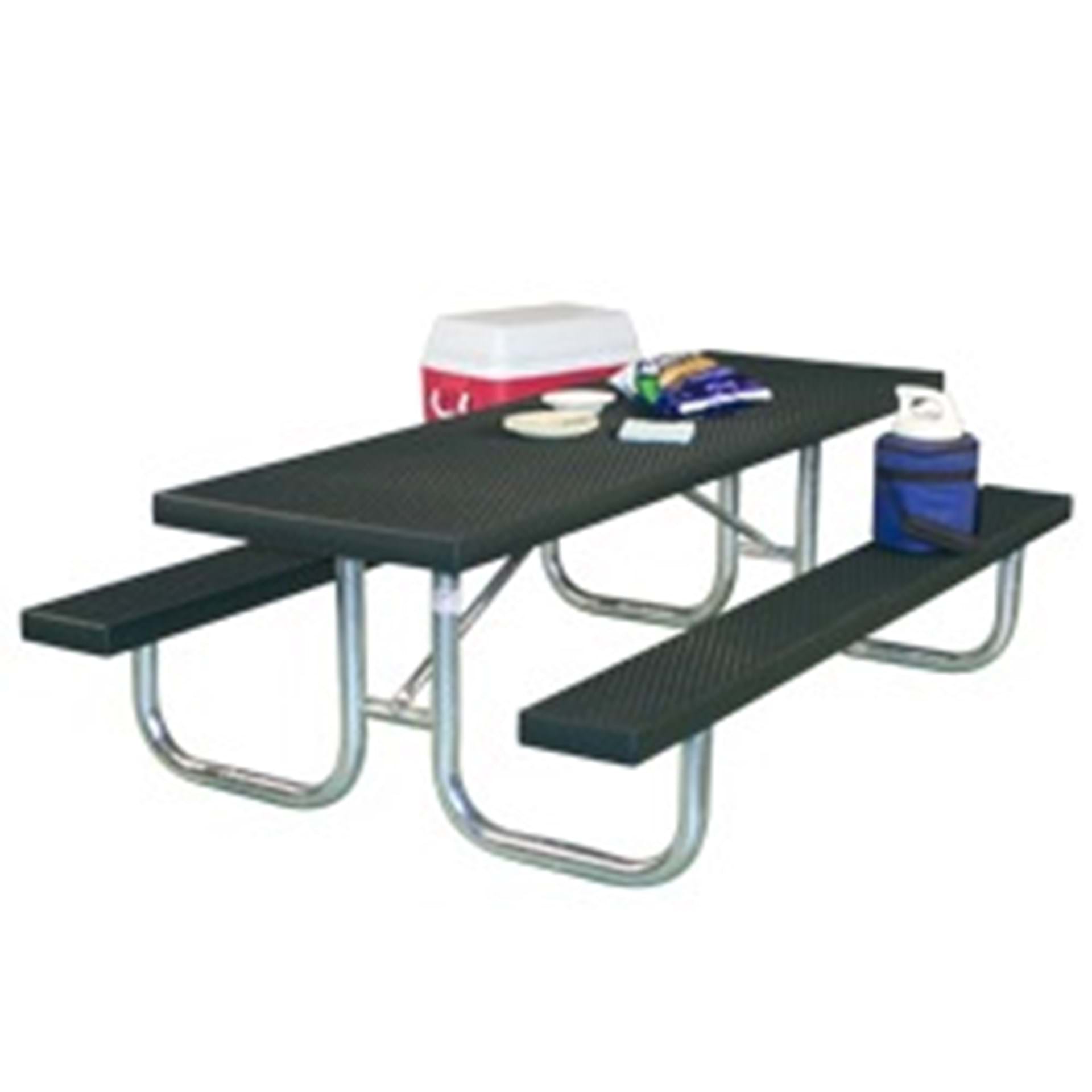

Snow Load/ Extreme Load Heavy Duty Picnic Table - XT Series
