Pilot Rock RJ Thomas Mfg. Co.

Snow Load/Extreme Load Full Size Pedestal Utility Table - APTX Series

Please make the following configuration choices:

Installation / Mount

Choose how you plan to install the product.

Frame Finish

Select the finish you want on the frames.

MATERIAL & LENGTH CHOICES

Select the Material and Length you want for this product.

($514.00)
($637.00)
($519.00)
($650.00)

Model APTX Full Sized Pedestal Rectangular Utility Tables provide a secure, permanent location which prevents theft.  Tables using V-Type expanded steel and H-Type perforated steel tables have been designed to withstand high elevation snow loads as well as other extreme weight loads.  These utility tables can be 6 or 8 ft. long and offer 30" table height (nominal dimensions).  These larger utility tables provide work or prep area for several people at the same time.

Specifications:

LOAD RATING:  The APT tables have been designed to withstand high elevation snow loads as well as other extreme weight loads.  They have been independently tested and rated by an independent lab and a state university and are rated to withstand weight loads up to 1420 lbs. per square foot.  In order to achieve this weight rating, these steel frame tables must be equipped with our V-Type expanded steel or H-Type perforated steel table structures.  Remember...the rating is Per Square Foot NOT per table!

FRAME:  Two heavy pedestal posts of 3" x 6" x 1/8" wall rectangular steel tubing to support the table.  Exposed ends of frame posts are sealed with welded on end caps.  Model APTX is designed for the embedded post installation.  Model APTX/P frame posts have 3/8” x 8” square steel bolt down base plates welded on (anchor bolts not included).

FINISH:  Standard finish: hot dip galvanized after fabrication for maximum protection from elements.  Or choose a powder coat finish (in place of galvanized finish) in your choice of color.

LENGTH:  6 or 8 ft long.

TABLE MATERIALS:
     • Thermo-plastic coated V-Type 3/4-#9 expanded steel
     • Thermo-plastic coated H-Type 14 ga. perforated steel
See Material Options.

OPTIONAL: Model ANC1-4 Anchor Kit (Requires 1 kit per leg)

You May Also Like

Charcoal Grills
B-24 Series Charcoal Grill
B-24 Series Charcoal Grill
SKW: B-24
This grill has a 384 sq. inch Infinitely Adjustable cooking grate.
Accessories
Model ANC1-4 Anchor Kit
Model ANC1-4 Anchor Kit
SKW: ANC1-4
Four 1/2" x 3" Concrete Screw Anchors
Picnic Tables - Snow Load Rated

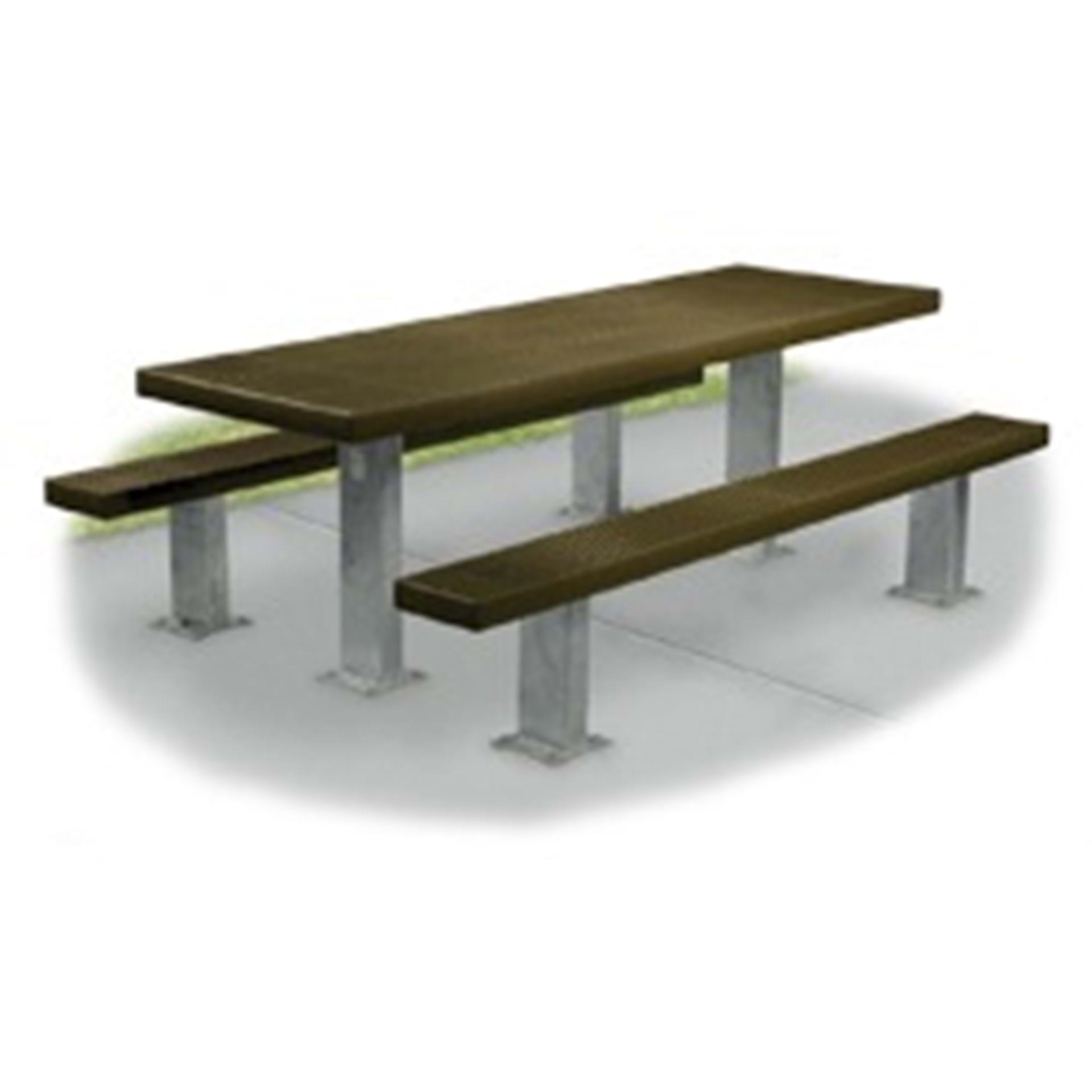

Snow Load/ Extreme Load Rated Multi-Pedestal Picnic Table - APT Series
