XTX Series Utility Table - Using Expanded Steel
Model XTX Utility Table is a durable and versatile design variation of our XT Series Picnic Tables.
Table top is 30" high (nom.). The wide stance frame with formed and flattened feet provide a stable portable table. The frame feet include 9/16" dia. holes for anchors (not included) for a secure surface bolt down installation.
FRAME KIT: All welded 2-3/8" OD steel pipe end frames (2.375" OD, 11 ga. wall, 2" ID nom. pipe specifications). Top mounting brackets are 2" x 2" x 10 ga. die formed steel angles. Frames supported by diagonal braces of 1-5/16" OD steel pipe attached to steel center channel. Includes all 3/8" dia. galvanized carriage bolt fasteners.
FINISH: Standard finish: hot dip galvanized after fabrication. Or choose a powder coat finish (in place of galvanized finish) in your color choice.
LENGTH: Tables can be 6, 8 or 10 ft. long.
TABLE MATERIAL: Our D-Type 3/4-#9 expanded steel thermo-plastic coated in your choice of color. See Material Options.
OPTIONAL: Model ANC3-4 Anchor Kit for surface mounting of 6' and 8' tables OR Model ANC3-6 Anchor Kit for surface mounting of 10' tables.
You May Also Like
Fabricated using expanded steel and available in 3 sizes.

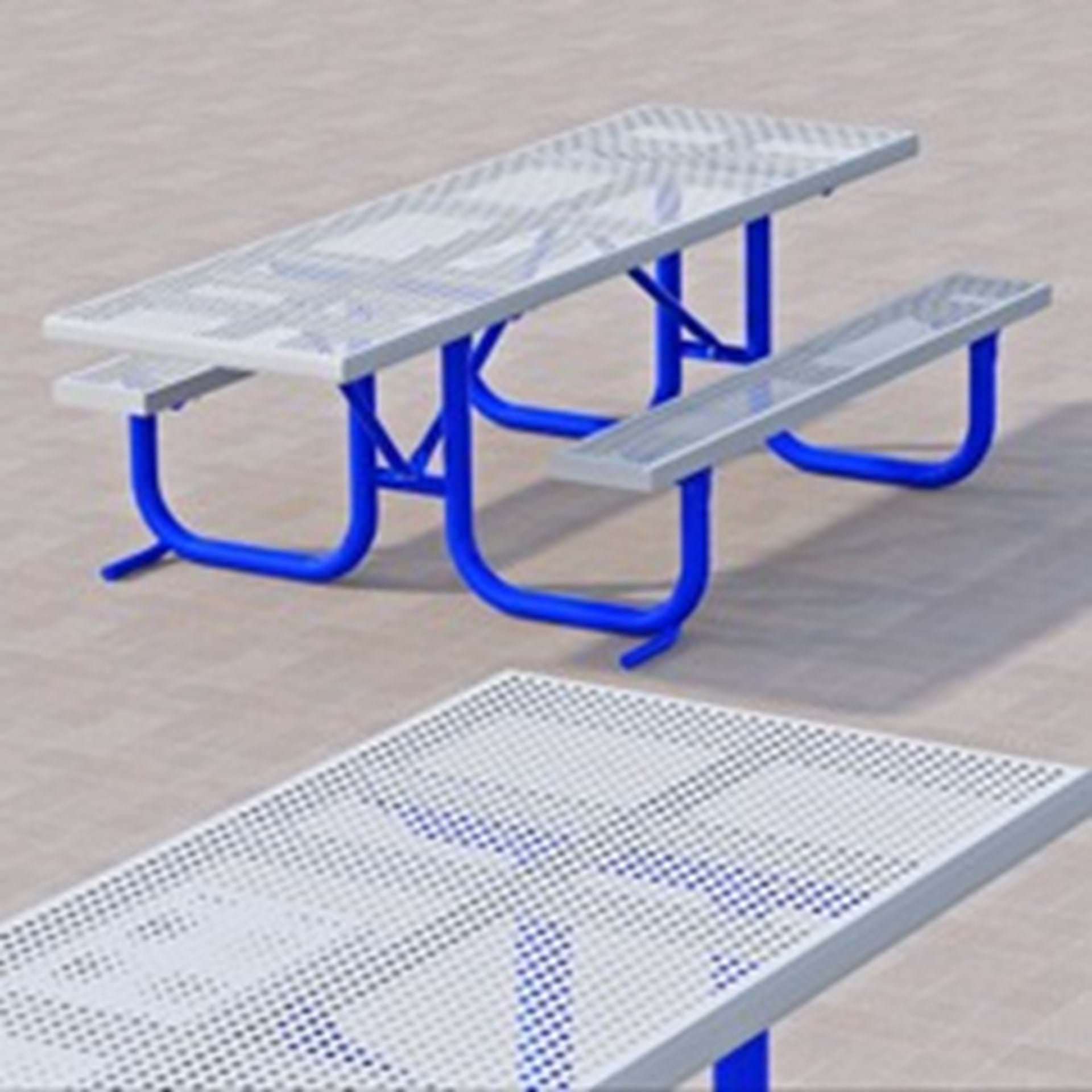

Extra strong table with ADA compliant end wheelchair accessible using steel component tops/seats.
