Athletic Bench - APB Series - Using Aluminum

Please make the following configuration choices:

Installation / Mount

Choose how you plan to install the product.

Frame Finish

Select the finish you want on the frames.


Select the Material and Length you want for this product.


The APB Series Athletic Bench uses a large rectangular steel post and is designed for stationary installations.  This versatile bench can fit in parks, streetscapes, amphitheaters and athletic facilities.


FRAME: Each bench seat is supported by two large, rugged pedestal posts of 3" x 6" x 1/8" wall rectangular steel tubing.  Exposed ends of the frame posts are sealed with welded on end caps.  Model APB/P frame posts have 3/8” x 8” square steel bolt down base plates welded on (anchor bolts not included).

FINISH: The standard finish is hot dip galvanized after fabrication for maximum protection from the elements.  Or choose the optional powder coat finish available in your choice of colors.

INSTALLATION: Model APB with embedded frame posts provides a secure, permanent location.  Model APB/P frame posts have 3/8” x 8” square steel bolt down base plates for surface installation (anchor bolts not included). See Option below.

LENGTH: APB Athletic Benches can be 4, 6 or 8 ft. long using an aluminum plank.

SEAT MATERIALS: 2” x 10” (nom.) aluminum plank with a clear anodized finish or a powder coat paint finish in your color choice.  See Material Options.

OPTIONAL: Model ANC1-4 Concrete Screw Anchor Kit (Requires 1 kit per leg)

You May Also Like

Model ANC1-4 Anchor Kit
Model ANC1-4 Anchor Kit
Four 1/2" x 3" Concrete Screw Anchors

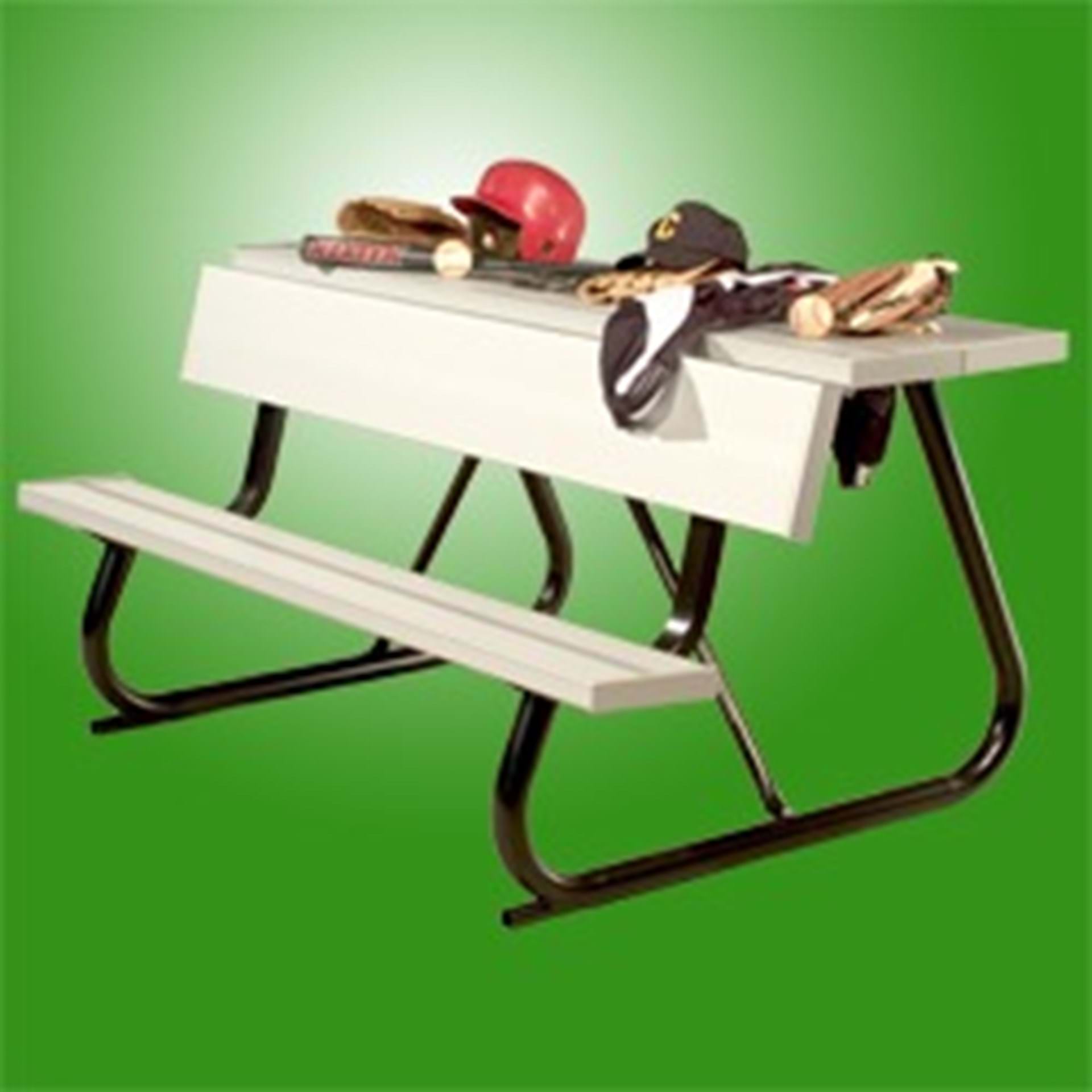

Team Bench with Equipment Deck - B300 Series
