Pilot Rock RJ Thomas Mfg. Co.

FS-30 Series Campfire Ring

Please make the following configuration choices:

Campfire Ring Side Heights

Choose your campfire ring side height.

($151.00)
($183.00)
($201.00)

Campfire Ring Anchor Systems

Choose your desired anchor system configuration

($20.00)
($17.00)

Campfire Ring Shelf Options

($17.00)

The FS Series Campfire Rings combine a single level cooking grate with our flanged fire ring – an economical design when cooking over the fire might be a lower priority.

Fire ring is rolled from a 3/16" thick steel plate with an integral formed 1" wide flange around top edge.  This flange provides extra strength against heat warpage and eliminates a vertical edge. Draft holes are provided for fire ventilation.

290 sq. inch single level cooking grate is hinged to the campfire ring and remains permanently attached.

Model FS-30 Series Campfire Ring features a 30” inside diameter and is available in three different side heights of 7-3/8”, 9”, and 11-3/8”.

FS Series fire rings include tip back anchor pins (/TB) to keep the campfire ring secured in one place, but allow the fire ring to tip up for easy clean out.  These pins must be set in concrete.

Cooking grate adjustment handles, made from 3/4" dia. steel, reach outside of the firering, away from the fire.  The handle grips are 1/8" x 1/2" coiled steel bar.  The cooking grate is built using 5/8" dia. steel perimeter bars and 1/2" dia. steel grate bars. All grate bars are welded on both sides.  The grate hinges are formed using 5/8" dia. steel bar.

OPTIONAL Anchor Systems:
Angle Spade Anchors (/AL) are 3 spades attached around the firering and buried in the ground. The firering cannot be tipped up.

Tip Back Spade Anchors (/TA) are 2 spades at the rear hinge point and buried in the ground. The firering can be tipped up.

Tip Back-Bolt Down Anchor Bracket (/TB-BD): this steel bracket will anchor your firering already equipped with tip back tabs (FA-30, FS-30, FSW-30, FSW/SL-30, FX-30 and L-32 series only) to an existing concrete surface. The firering will be able to tip up. The TB-BD bracket includes fasteners to attach it to the firering tabs. It does NOT include the (3) ½-inch diameter anchor bolts.
(Note: We do not recommend installation on top of concrete. But if you choose to install your firering on concrete the TB-BD anchor will secure the firering onto your concrete base.)

OPTIONAL: Model S-5 Bolt-on utility shelf

 California's Proposition 65.

You May Also Like

Campfire Rings
FS-30 Accessible Campfire Ring
FS-30 Accessible Campfire Ring
SKW: FS-30
This ADA compliant Campfire Ring features a single level cooking grate
Campfire Rings
FS-30/11 Series Campfire Ring - BUY NOW
FS-30/11 Series Campfire Ring - BUY NOW
SKW: FS-30/11
Campfire Ring - 11" tall, inside diameter of 30"
Campfire Rings

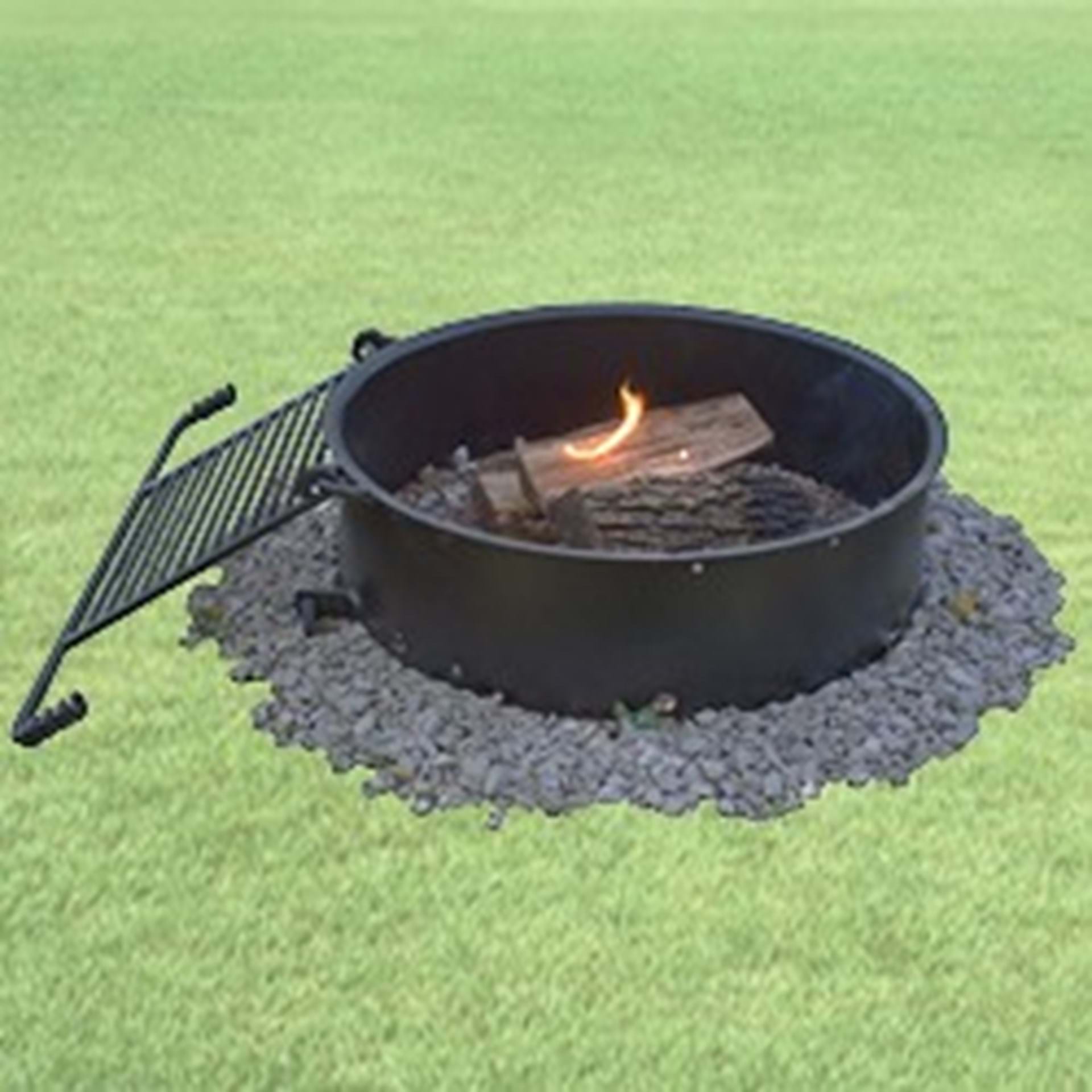

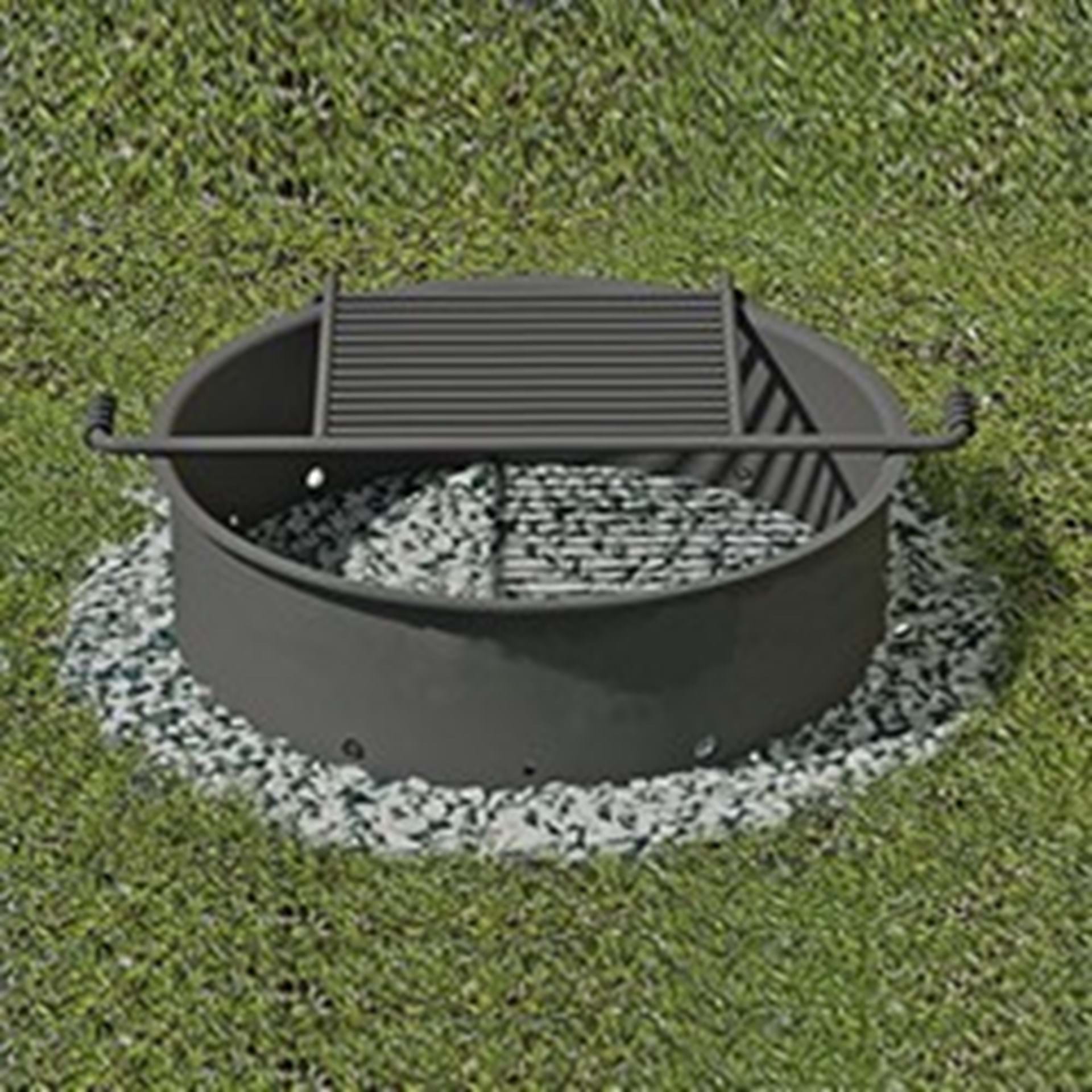

FS-30/7 Series Campfire Ring - BUY NOW
