Pilot Rock RJ Thomas Mfg. Co.

FS-56 Campfire Ring

Please make the following configuration choices:

Campfire Ring Side Heights

Choose your campfire ring side height.

($271.00)
($312.00)
($355.00)

Campfire Ring Anchor Systems

Choose your desired anchor system configuration

($28.00)

Campfire Ring Shelf Options

($17.00)

The FS Series Campfire Rings combine a single level cooking grate with our flanged fire ring – an economical design when cooking over the fire might be a lower priority.

Fire ring is rolled from a 3/16" thick steel plate with an integral formed 1" wide flange around top edge.  This flange provides extra strength against heat warpage and eliminates a vertical edge.  Draft holes are provided for fire ventilation.

290 sq. inch single level cooking grate is hinged to the campfire ring and remains permanently attached.

Model FS-56 Series Campfire Ring features a 54” inside diameter and is available in three different side heights of 7-3/8”, 9”, and 11-3/8”.

FS Series fire rings include pin anchors (/PA) to keep the campfire ring secured in one place, but do not allow for tip back. These pins must be set in concrete.

Cooking grate adjustment handles, made from 3/4" dia. steel, reach outside of the firering, away from the fire. The handle grips are 1/8" x 1/2" coiled steel bar. The cooking grate is built using 5/8" dia. steel perimeter bars and 1/2" dia. steel grate bars. All grate bars are welded on both sides. The grate hinges are formed using 5/8" dia. steel bar.

OPTIONAL Anchor Systems:
Angle Spade Anchors (/AL) are 4 spades attached around the firering and buried in the ground. The firering cannot be tipped up.


OPTIONAL:  Model S-5 Bolt-on utility shelf

 California's Proposition 65.

You May Also Like

Lantern Poles
 Model LH-2 - Lantern Holder With 2 Arms
Model LH-2 - Lantern Holder With 2 Arms
SKW: LH
Safely hang camping lanterns. Available with Wheelchair Accessible Option.
Trash & Recycling Receptacles

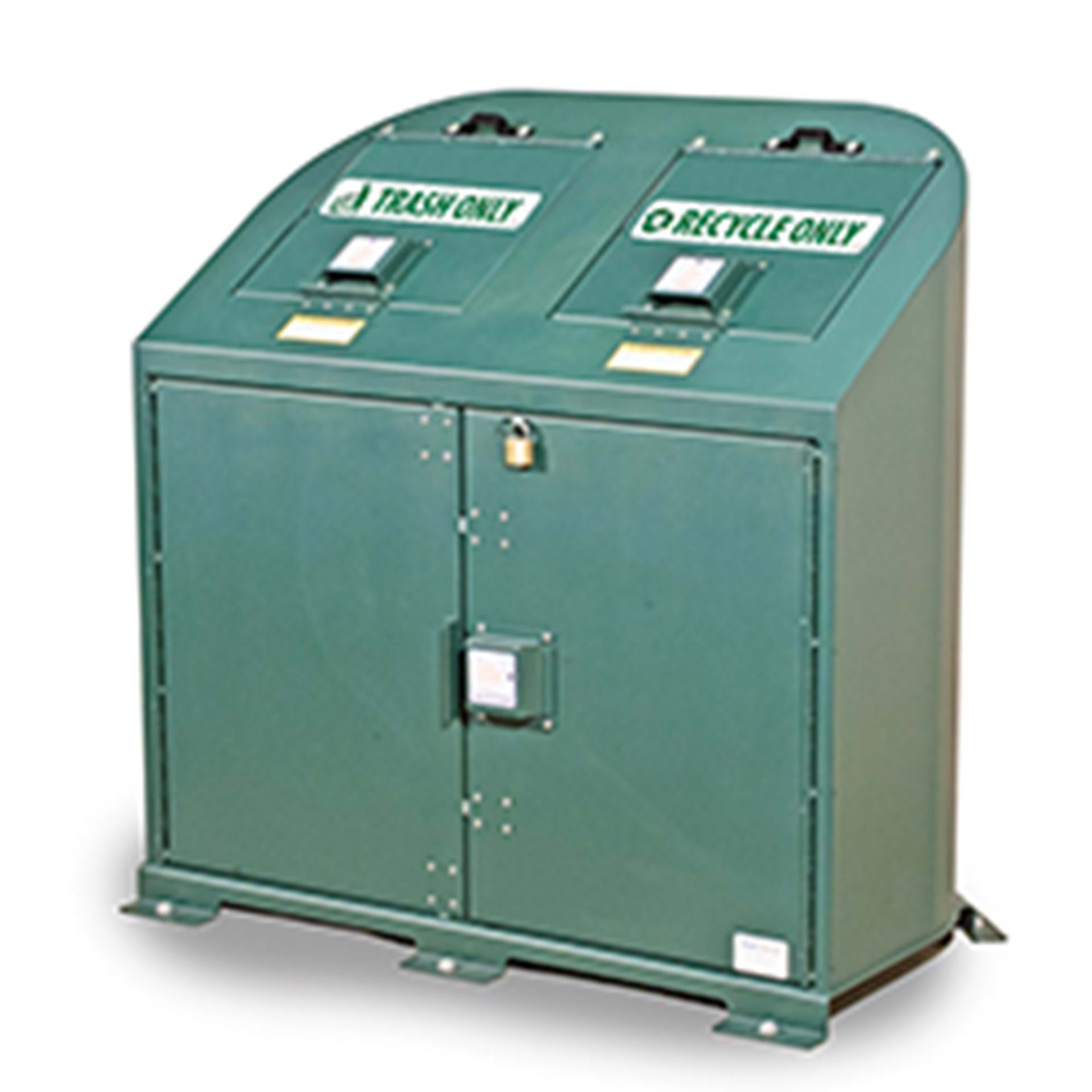

Model BPRT2 - Bear Resistant Trash and Recycling Receptacle - 2 Modules
Model BPRT2 - Bear Resistant Trash and Recycling Receptacle - 2 Modules
SKW: BPRT2
When a bear gets into your trash, you've got a BIG mess and a BIG problem. Certified by the IGBC.
Picnic Tables

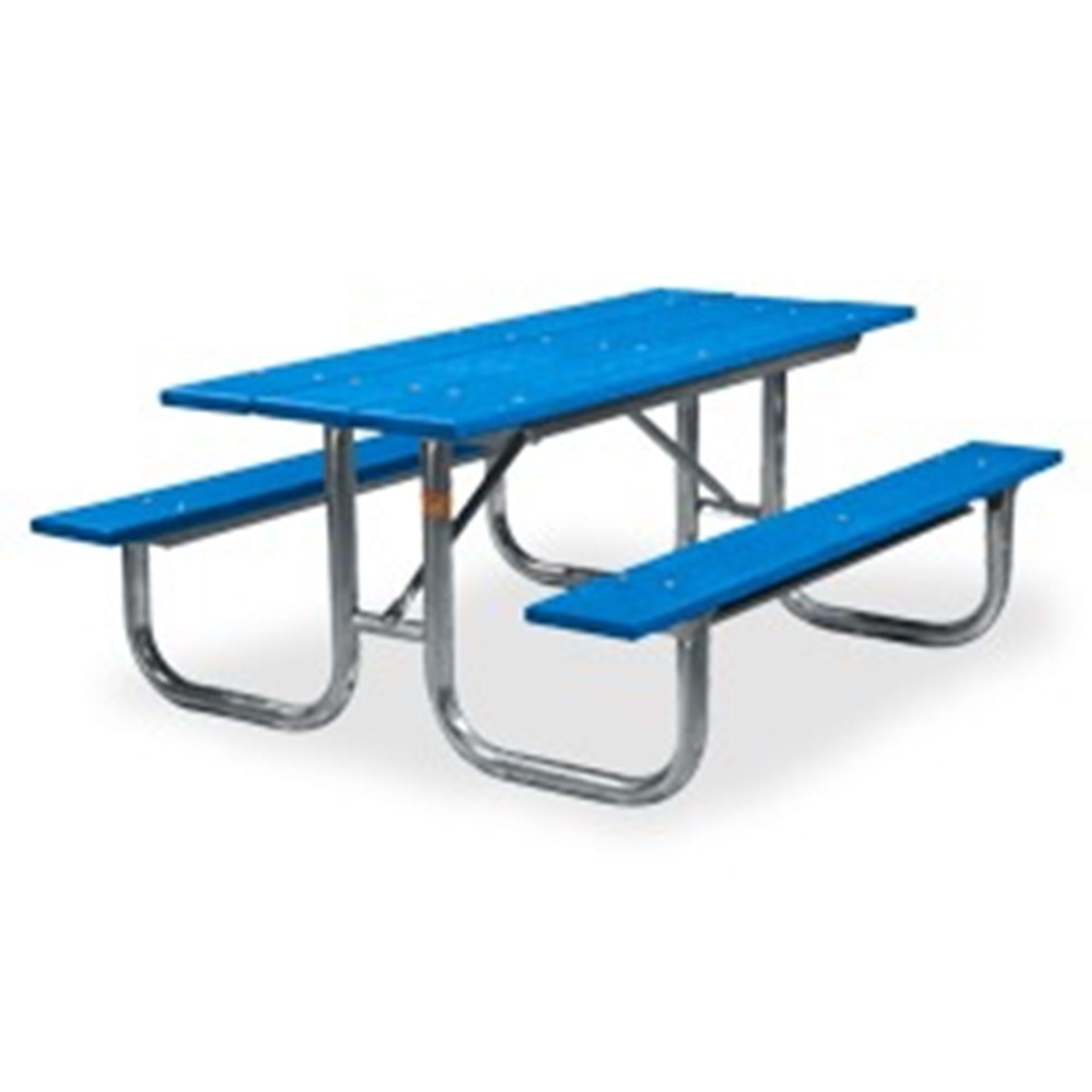

XT Series Picnic Table - Using Recycled Plastic
