Pilot Rock RJ Thomas Mfg. Co.

FSDW-30 Accessible Campfire Ring

Please make the following configuration choices:

Campfire Ring Side Heights

Choose your campfire ring side height.

($426.00)

Campfire Ring Anchor Systems

Choose your desired anchor system configuration

Campfire Ring Shelf Options

($17.00)
Material Options

Model FSDW-30/18/TB accessible campfire ring offers a full-height outer ring as a heat barrier for the inner ring.  One inch diameter draft holes feed air into the space between the rings.  This unit does not require aggregate fill because it is equipped with a fire/log grate inside the fire ring.  This campfire ring is designed to accommodate a person in a wheelchair, but all campers will find this fire ring a versatile complement to their campsite.  Tip back anchor pins secure the unit in place.  Anchors must be set in concrete.

Fabrication includes a 1/8" thick steel outer ring with the formed reinforcing flange, and a 3/16" thick steel inner ring.  Both rings are 17-3/8" tall. The 370 sq. inch single level cooking grate is permanently hinged to the outer ring.  Inside is the large 380 sq. inch log grate.  This log grate is hinged to the inner ring and tips up to simplify ash clean out.  The cooking and fire grates are fabricated using 5/8" dia. perimeter and handle bars with coiled steel bar grips, and 1/2" dia. grate bars.  All grate bars are welded on both sides.  This campfire ring is finished with high temp non-toxic black enamel paint.

OPTIONAL: Bolt-on utility shelf Model S5

 California's Proposition 65.

You May Also Like

Utility Tables

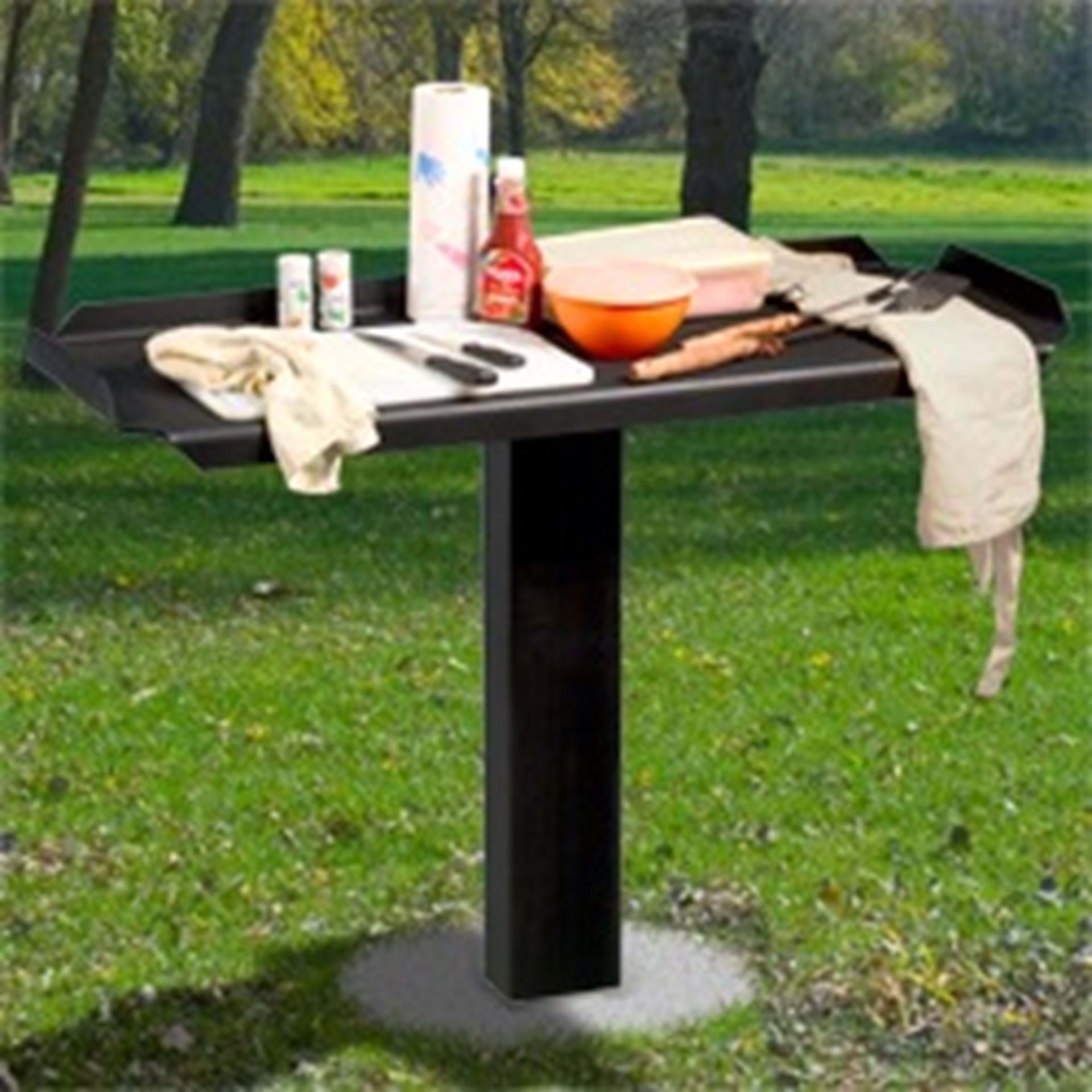

Model ULT-2 Utility Table
Model ULT-2 Utility Table
SKW: ULT-2::
18" x 48" table on a single embedded or surface mount pedestal.
Trash & Recycling Receptacles

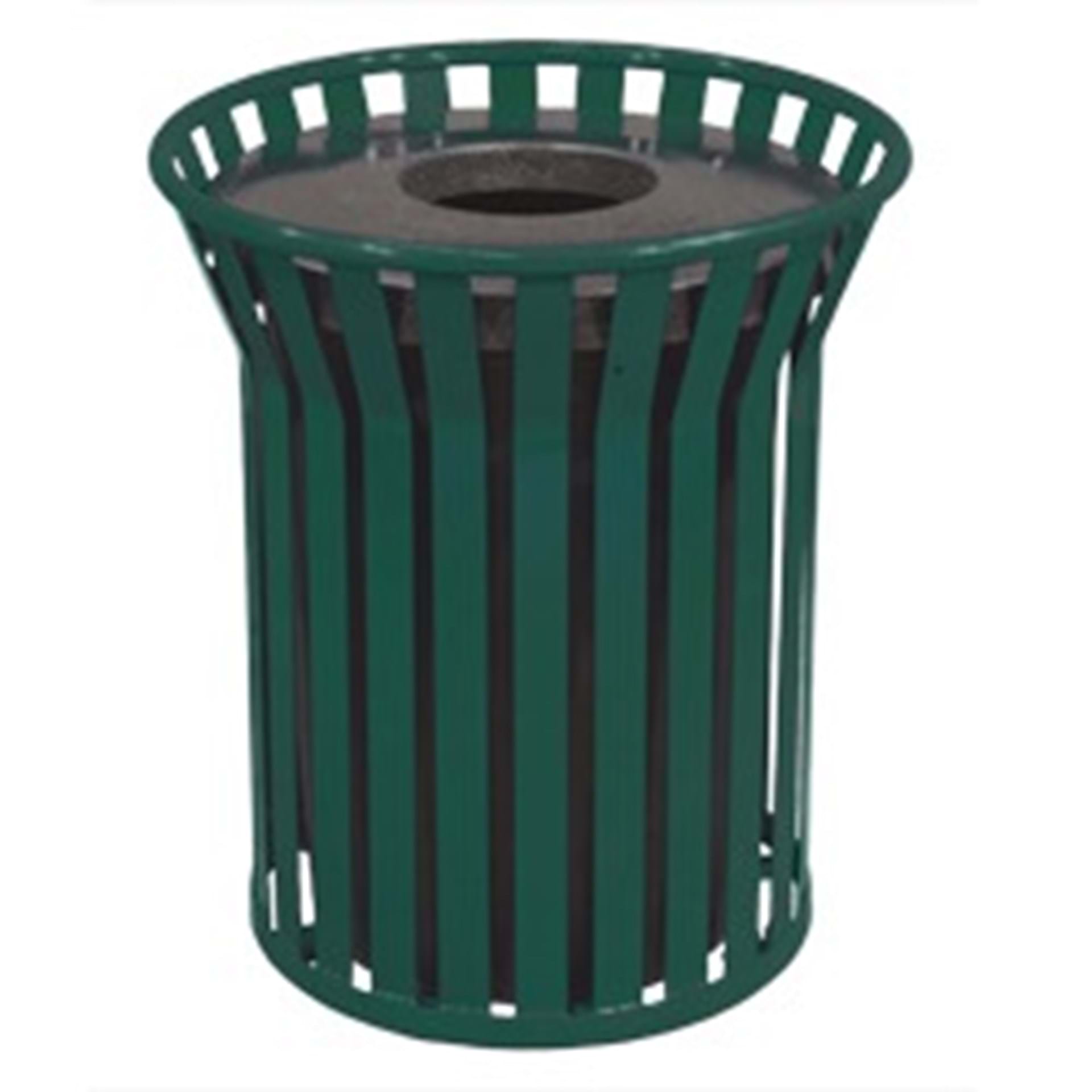

Round Receptacle - Vertical Steel Straps
