Pilot Rock RJ Thomas Mfg. Co.

FX-30 Series 18-Inch Tall Campfire Ring Only

Please make the following configuration choices:

Campfire Ring Side Heights

Choose your campfire ring side height.


Campfire Ring Anchor Systems

Choose your desired anchor system configuration


Campfire Ring Shelf Options


Campfire Ring Heat Shields

Select an optional heat shield for your campfire ring. NOT AVAILABLE on rings less than 11 inches tall.

  • Price Per Unit Starts At:
Material Options

When you need the fire barrier only, without the cooking grate.

Our FX Series Campfire Rings provide a solid steel fire barrier, and do not include the cooking grate.

Perfect when you don’t plan to cook over the fire, but you need the barrier to control the fire, and protect the property or your landscape blocks.

The FX Series steel ring is rolled from 3/16” thick steel plate with an integral formed 1” wide flange around the top edge.  This flange provides extra strength against heat warpage and eliminates a vertical edge.  Draft holes are provided for fire ventilation.

FX-30/18 Series Campfire Ring has a 30-inch inside diameter, a 32-inch outside diameter at the top flange, and taller 17-3/8" side height.

FX-30/18 Series firerings come with stationary pin anchors (PA) that are embedded in concrete footings to secure the ring on the ground.

OPTIONAL Anchor Systems:
Angle Spade Anchors (/AL) are 3 spades attached around the firering and buried in the ground. The firering cannot be tipped up.

OPTIONAL:  Model S5 bolt on utility shelf.

OPTIONAL: Model DIG-U4 removeable, drop-in cooking grate.

OPTIONAL: Heat Shield (add /H to end of model number). An optional welded-on Heat Shield is available on some Pilot Rock campfire rings.  This welded-on shield can be added to new Pilot Rock campfire rings to give protection from hot surfaces around the outside of the ring.  The 10 ga. x 8" high Shield provides a 7/8" air gap around the area of these tall fire rings exposed to heat (the lower portion of these fire rings is filled with aggregate).  NOTE: Not available on campfire rings less than 11 inches tall.

 California's Proposition 65.

You May Also Like

Charcoal Grills
ASW-20 Series Accessible Grills
ASW-20 Series Accessible Grills
This grill meets the ADA guidelines for accessibility and operability.
Campfire Rings
Drop In Grate for FX Series Campfire Ring
Drop In Grate for FX Series Campfire Ring
Removeable Cooking Grate for FX Series Firerings & Firepits. Available in Steel or Stainless Steel.
Picnic Tables - Accessible

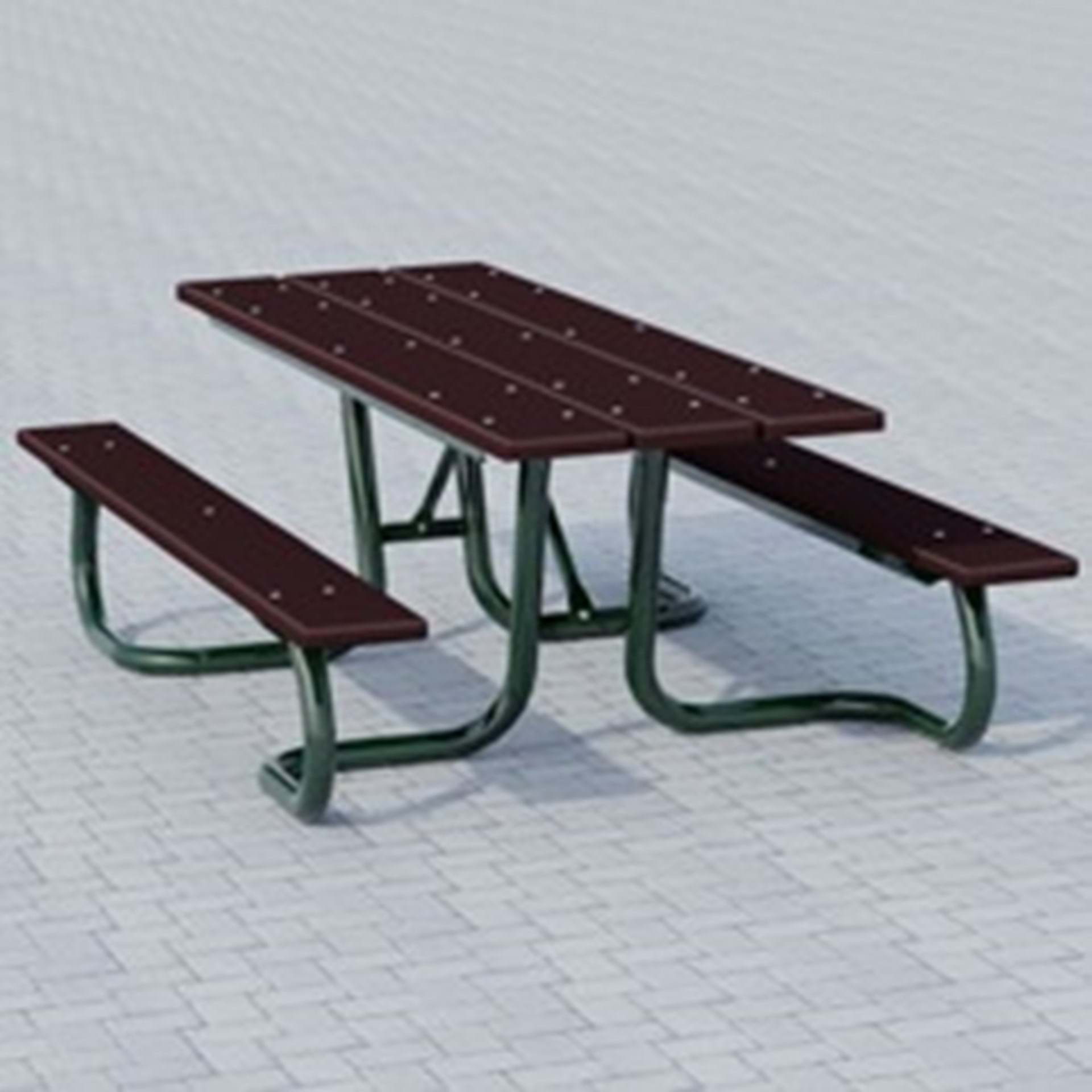

WXT and WXTH Accessible Picnic Table - Using Recycled Plastic
