FX-30 Series Campfire Ring Only

Please make the following configuration choices:

Campfire Ring Side Heights

Choose your campfire ring side height.

($114.00)
($146.00)
($165.00)

Campfire Ring Anchor Systems

Choose your desired anchor system configuration

($20.00)
($17.00)

Campfire Ring Shelf Options

($17.00)

When you need the fire barrier only, without the cooking grate.

Our FX Series Campfire Rings provide a solid steel fire barrier, and do not include the cooking grate.

Perfect when you don’t plan to cook over the fire, but you need the barrier to control the fire, and protect the property or your landscape blocks.

The FX Series steel ring is rolled from 3/16” thick steel plate with an integral formed 1” wide flange around the top edge.  This flange provides extra strength against heat warpage and eliminates a vertical edge.  Draft holes are provided for fire ventilation.

FX-30 Series Campfire Rings have a 30-inch inside diameter, a 32" outside diameter at the top flange, and come in three different side heights.  Select the side height to achieve the degree of fire barrier needed.

All FX Series firerings come with tip back anchor pins (/TB) to keep the ring secured in one place, but allow the ring to tip up for easy clean out.  The pins should be installed in concrete footings.

OPTIONAL Anchor Systems:
Angle Spade Anchors (/AL) are 3 spades attached around the firering and buried in the ground. The firering cannot be tipped up.

Tip Back Spade Anchors (/TA) are 2 spades at the rear hinge point and buried in the ground. The firering can be tipped up.

Tip Back-Bolt Down Anchor Bracket (/TB-BD): this steel bracket will anchor your firering already equipped with tip back tabs (FA-30, FS-30, FSW-30, FSW/SL-30, FX-30 and L-32 series only) to an existing concrete surface. The firering will be able to tip up. The TB-BD bracket includes fasteners to attach it to the firering tabs. It does NOT include the (3) ½-inch diameter anchor bolts.
(Note: We do not recommend installation on top of concrete. But if you choose to install your firering on concrete the TB-BD anchor will secure the firering onto your concrete base.)

OPTIONAL:  Model S5 bolt on utility shelf.

OPTIONAL: Model DIG-U4 removeable, drop-in cooking grate.

OPTIONAL: Model CFX-30 Snuffer Cover.

 California's Proposition 65.

You May Also Like

Lantern Poles
 Model LH-180 - Lantern Holder With 180 Degree Arm
Model LH-180 - Lantern Holder With 180 Degree Arm
SKW: LH
Safely hang camping lanterns. Available with Wheelchair Accessible Option.
Campfire Rings
Drop In Grate for Campfire Ring
Drop In Grate for Campfire Ring
SKW: DIG
Removeable Cooking Grate for Fire Rings and Fire Pits. Available in Steel or Stainless Steel.
Campfire Rings
FX-30/11 Campfire Ring No Grate - BUY NOW
FX-30/11 Campfire Ring No Grate - BUY NOW
SKW: FX-30/11
Campfire Ring Only - 11" tall, with 30" inside diameter
Campfire Rings

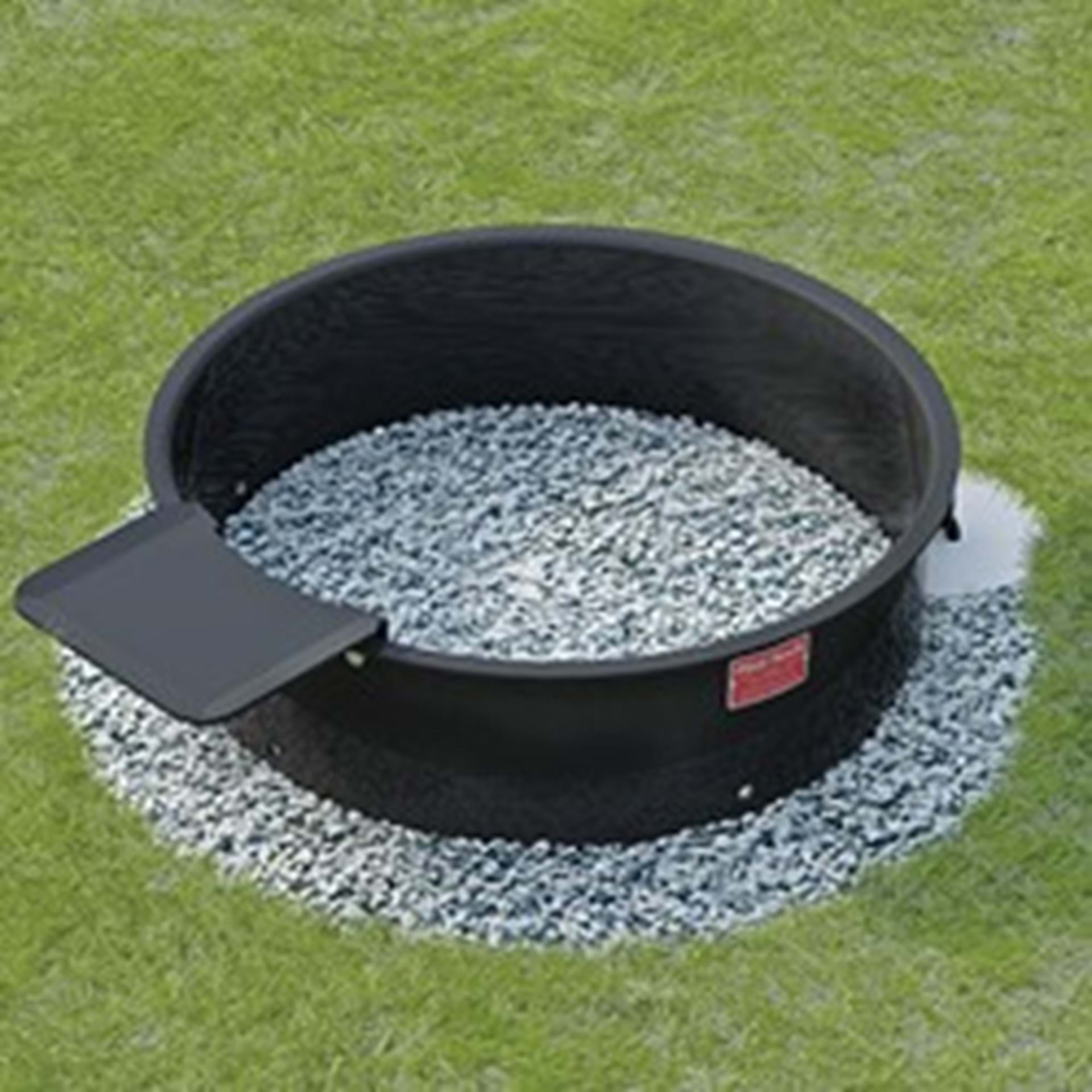

FX-30/7 Campfire Ring No Grate - BUY NOW
FX-30/7 Campfire Ring No Grate - BUY NOW
SKW: FX-30/7
Campfire Ring Only - 7" tall, with 30" inside diameter
Campfire Rings
FX-30/9 Campfire Ring No Grate - BUY NOW
FX-30/9 Campfire Ring No Grate - BUY NOW
SKW: FX-30/9
Campfire Ring Only - 9" tall, with 30" inside diameter
Picnic Tables

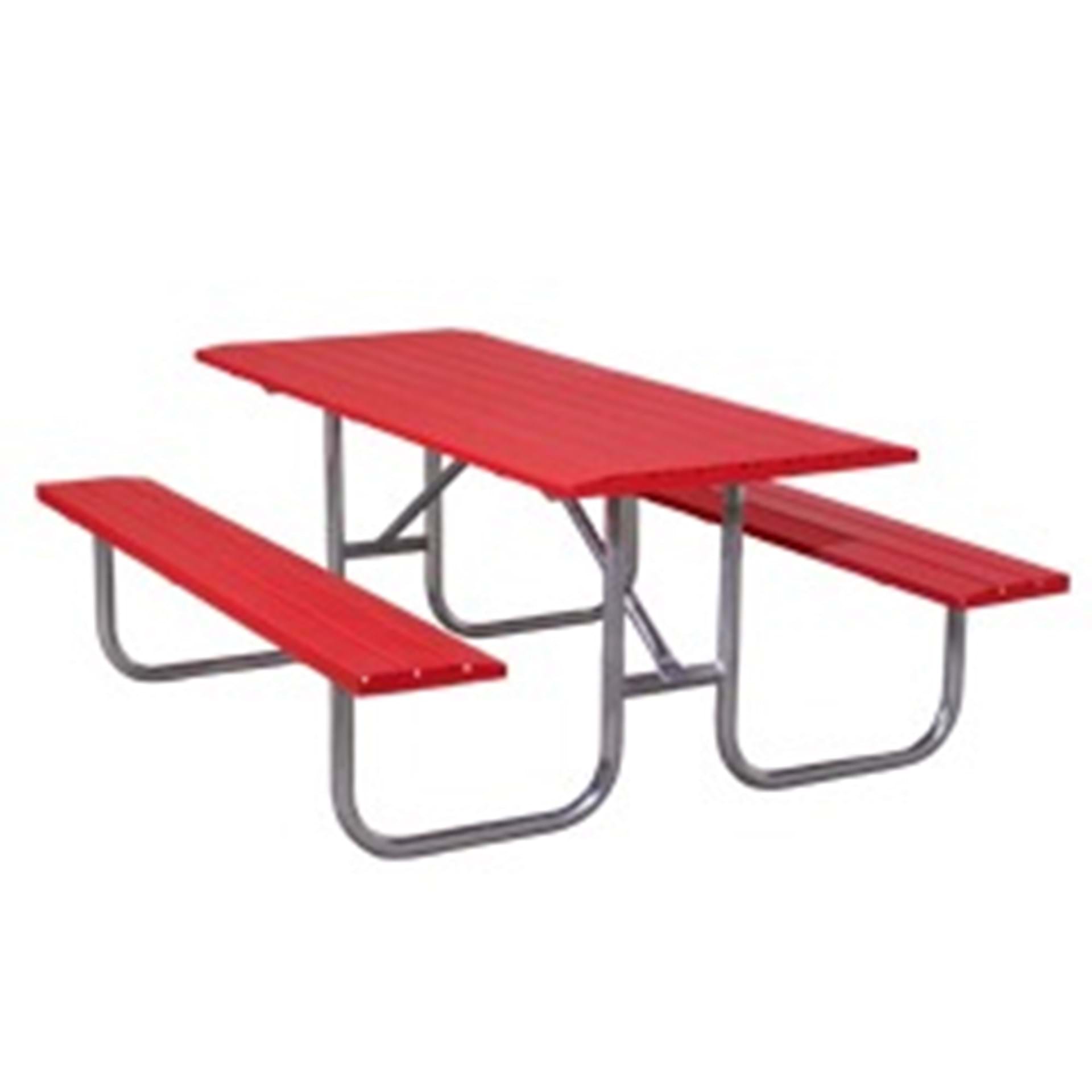

UT Series Picnic Table - Using Formed Steel Channel
