Pilot Rock RJ Thomas Mfg. Co.

M-32/17 Accessible Campfire Ring

Please make the following configuration choices:

Campfire Ring Side Heights

Choose your campfire ring side height.

($309.00)

Campfire Ring Anchor Systems

Choose your desired anchor system configuration

Campfire Ring Shelf Options

($17.00)

Campfire Ring Heat Shields

Select an optional heat shield for your campfire ring. NOT AVAILABLE on rings less than 11 inches tall.

($66.00)

Model M-32 accessible campfire ring features a flat rear panel so wheelchairs can have closer access to the cooking grate and adjustment handles.  The 300 sq. inch cooking grate adjusts to 4 levels between 19" and 24" above the ground. This fire ring design allows the grate to be adjusted one side at a time, using only one hand; without tight grasping, pinching or twisting of the wrist; and does not exceed 10 lbs. to lift.

The fire ring is rolled using 3/16" thick steel, with 1" formed flange for strength and safety.  The adjustment panels are cut from 3/16" steel, and also serve as heat shields for the grate handles.  The 300 sq. inch cooking grate is welded together using 5/8" dia. handle/support bars and 1/2" dia. grate bars, and includes handle grips of 1/8" x 1/2" coiled steel.  All grate bars are welded on both sides.  The finish is high temp non-toxic black enamel paint.  Pin anchors provide a fixed location and must be set in concrete.

The fire ring is filled with aggregate (not included) to about 10-1/2" deep to provide the elevated fire surface.  This fill also insulates the ground to reduce the chance of root fires in heavily wooded areas.  Drain/draft holes are provided around the perimeter of the fire ring.

OPTIONAL: Bolt-on utility shelf Model S5

OPTIONAL: Heat shield.

 California's Proposition 65.

You May Also Like

Picnic Tables

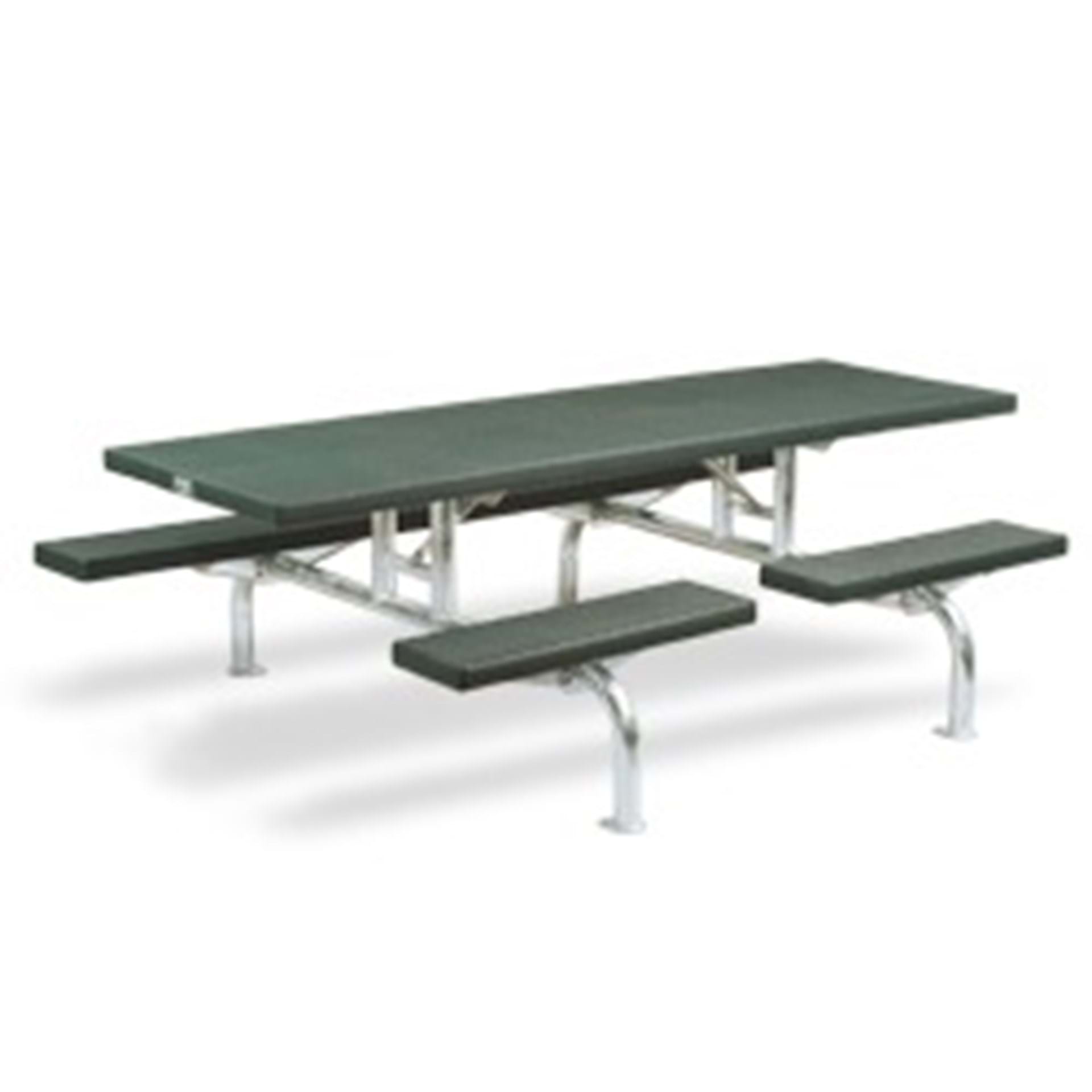

Caterpillar Picnic Table - T600 Series
Caterpillar Picnic Table - T600 Series
SKW: T600
Elevated, open span frame design creates a clear area for easier clean-up. CLICK TO SEE MORE.
Utility Tables

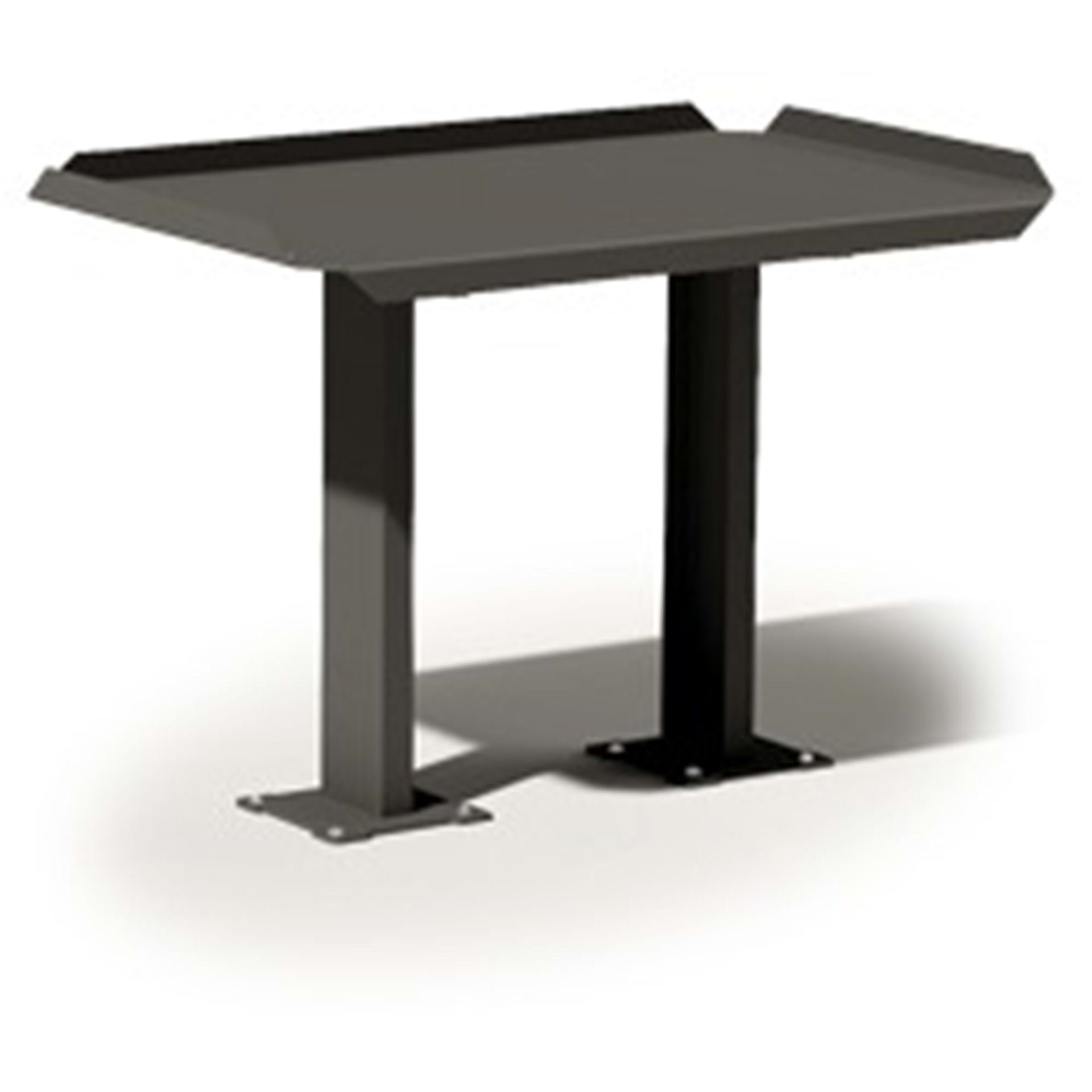

Model ULT-3 Utility Table
