Pilot Rock RJ Thomas Mfg. Co.

K-20 Charcoal Grill

Please make the following configuration choices:

Shelves for Grills

If you want an optional utility shelf for your grill select the shelf here.


Base Post Options - Grills

Select the base post for your preferred installation method. A base post must be selected.


Other Options for Grills

Select another Add-On Option for your grill. Also see Your Grill Accessories page for more information.

  • Price Per Unit Starts At:
Material Options

Model K-20 charcoal grill features a cooking grate that adjusts to 4 levels, plus tips up for easy fire building and clean out.  The grate stays permanently attached to firebox.

Grill rotates 360 degrees in either direction on a theft-proof swivel attachment and stands on a 3-1/2" OD post (B2) for embedded installation.

Welded construction: 3/16" thick (7 ga.) steel grill firebox with die-formed reinforcing flanges; 5/8" dia. steel perimeter and handle bars, 1/2" dia. grate bars.  All grate bars are welded on both sides.  Entire grill is finished with high temp nontoxic black enamel paint.

Side indentations support the grate in 4 locations and minimize side openings for superior draft protection.  Coiled 1/8" x 1/2" steel bar handle grips for convenient grate adjustment.

OPTIONAL: Model K-20 grill can be equipped with a bolt on utility shelf, Model S3. This shelf cannot be used with the optional Grill Cover.

OPTIONAL: Model J-20 and K-20 grills can include 8" x 15" (non removeable) steel hot plate, replacing a portion of the bars in the cooking grate (e.g. becomes Model K-20/HP B2).

OPTIONAL: Model K-20 grill can be equipped with a hinged Grill Cover.  This Grill Cover cannot be used with the optional bolt on utility shelf (S3).  However, the Grill Cover can be used with the S6 Swivel Shelf.

OPTIONAL: Model K-20 grills can be equipped with a swivel shelf, Model S6, that installs on the 3-1/2" OD base post.  This shelf can be used with the Grill Cover option.

OPTIONAL BASES: To replace the standard embedded post.
Bolt down/surface mount post (B3).  Anchor bolts are not included - use Model ANC1-4 Concrete Anchor Kit.
Portable disc base post (B4).

 California's Proposition 65.

You May Also Like

Charcoal Grills
Add-on Shelves
Add-on Shelves
Add an optional shelf to your existing Pilot Rock grill
Picnic Tables

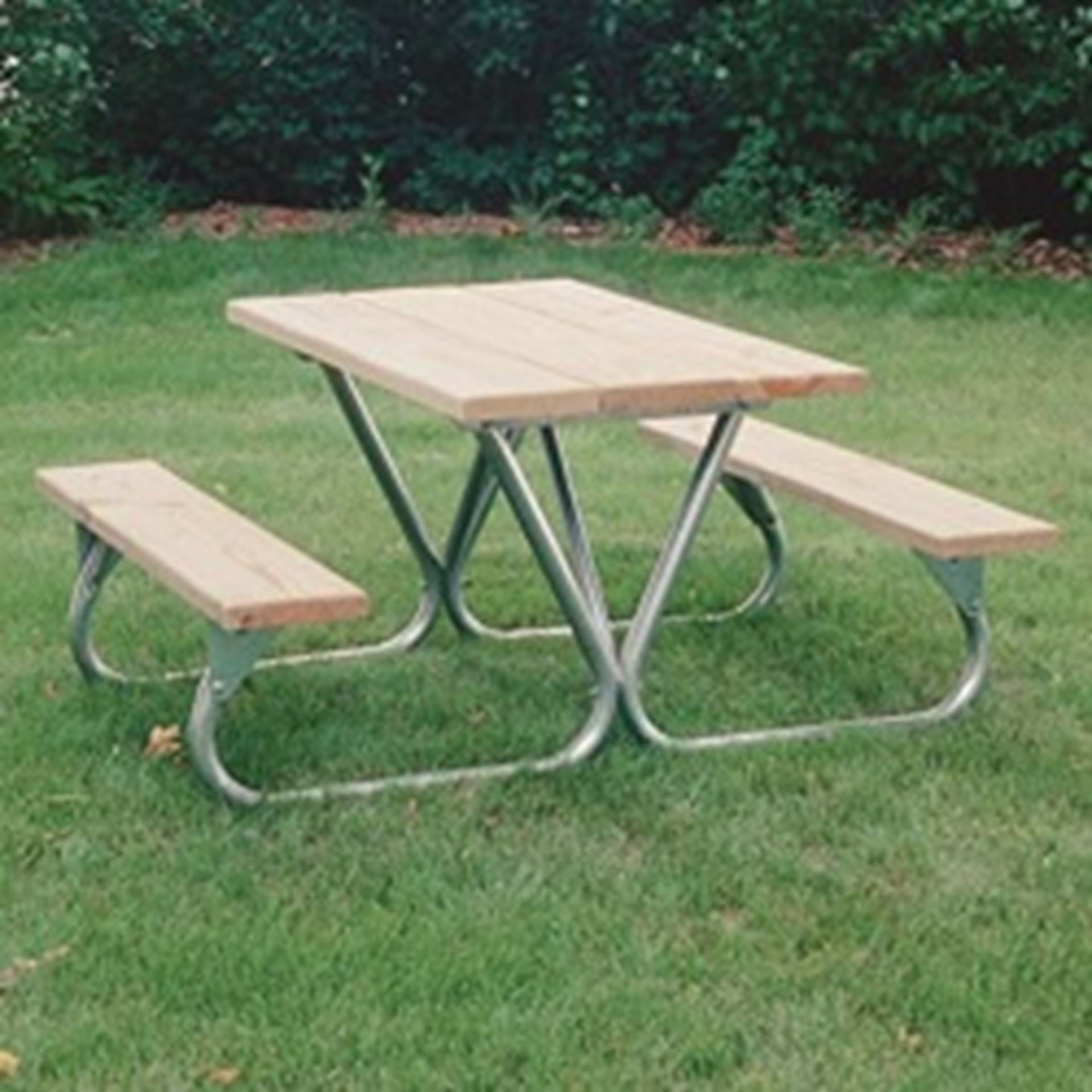

BTXG Series Lighter Duty Picnic Table - Using Lumber
