Pilot Rock RJ Thomas Mfg. Co.

L-1500/S Series Charcoal Grill

Please make the following configuration choices:

Shelves for Grills

If you want an optional utility shelf for your grill select the shelf here.


Base Post Options - Grills

Select the base post for your preferred installation method. A base post must be selected.

  • Price Per Unit Starts At:
Material Options

Model L-1500/S offers 1350 sq. in. on twin single-level hinged cooking grates with one fire grate that adjusts to 4 levels under them.

The L-1500/S also offers continuous 360-degree rotation on theft-proof swivel attachments.

This charcoal grill stands on a 6" OD post (B8) and features a 10" sq. bolt down plate for installation onto a concrete surface.  Four 1/2" x 6" j-bolt anchors are included for installation in a new concrete footing.  Optional: Use Model ANC1-4 Concrete Anchor Kit for installation on an existing concrete surface.

Standard equipment includes (1) bolt on 12" x 36" steel utility shelf (S4). A second shelf is optional.

The L-1500/S charcoal grill includes all welded construction: 3/16" thick (7 ga.) steel grill firebox with die-formed reinforcing flanges, substantial gusseted bracing and ring reinforcement to help dissipate heat.  Grates use 5/8" dia. steel perimeter and handle bars, and 1/2" dia. grate bars.  All grate bars are welded on both sides.  Entire grill is finished with high temp non-toxic black enamel paint.

OPTIONAL BASES: To replace the standard surface mount base.
Portable 4-wheel caster base (B11).
Embedded base post (B16) is 6" OD x 40" long.

OPTIONAL:  A second Model S4 bolt on utility shelf.

 California's Proposition 65.

You May Also Like

Charcoal Grills
Grill & Grate Scraper - GGS/B-1
Grill & Grate Scraper - GGS/B-1
Grate scraper for cleaing off your grill
Charcoal Grills

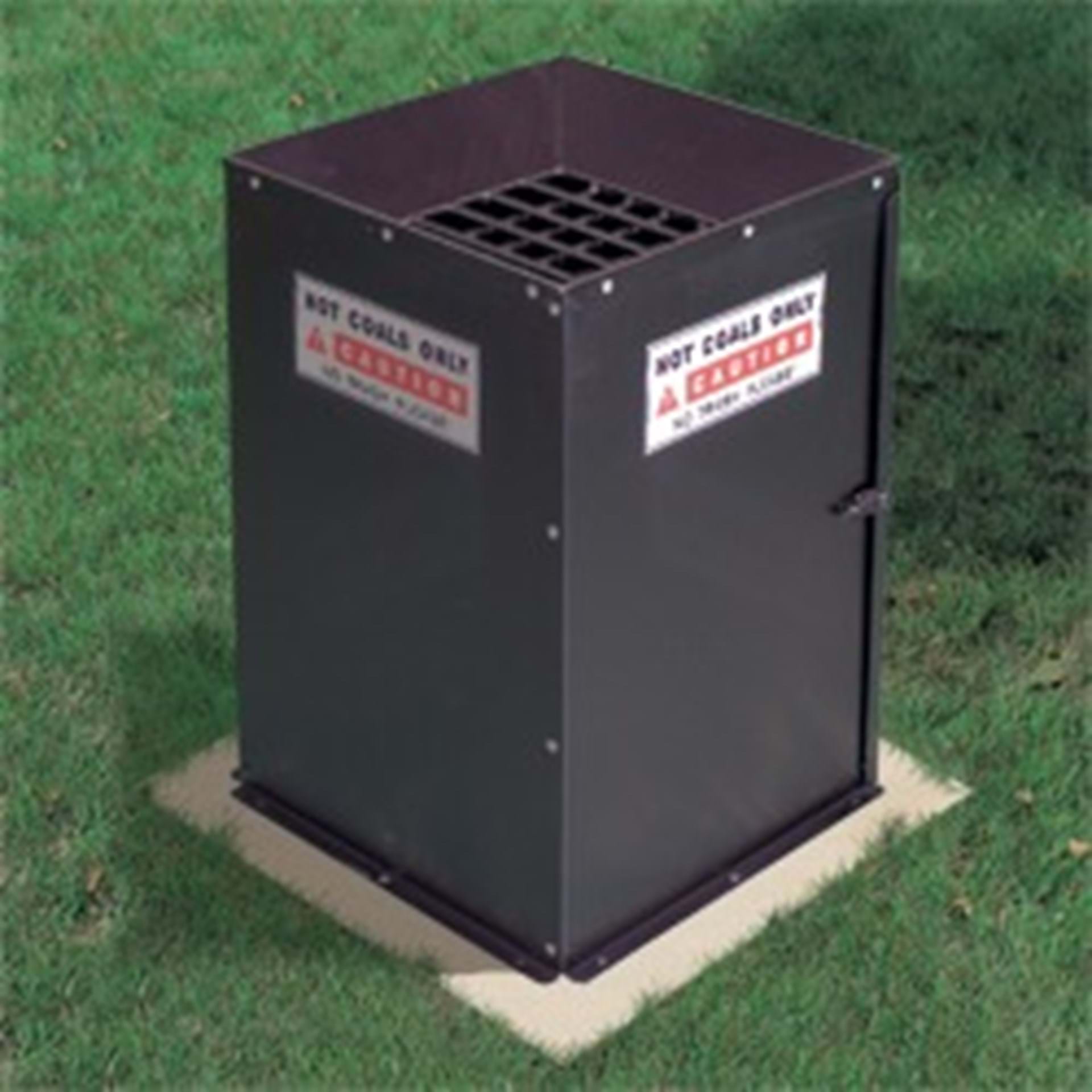

Hot Coal Bin
