Pilot Rock RJ Thomas Mfg. Co.

N/G-20 Galvanized Steel Charcoal Grill

Please make the following configuration choices:

Grate Options

You have the option for a stainless steel cooking grate to replace the standard grate.


Shelves for Grills

If you want an optional utility shelf for your grill select the shelf here.


Base Post Options - Grills

Select the base post for your preferred installation method. A base post must be selected.


Other Options for Grills

Select another Add-On Option for your grill. Also see Your Grill Accessories page for more information.

  • Price Per Unit Starts At:
Material Options

Model N/G-20 charcoal grill has all the features of the N-20 but with a hot-dip galvanized firebox and post for rust inhibition and 300 sq. inches of cooking area on the four-level adjustable cooking grate.

All N-Series charcoal grills are permanently attached to the base post with our unique swivel mechanism providing a theft-proof connection with continuous 360-degree rotation in either direction.  Embedded installation of post is standard (B2G) using a 3-1/2" OD x 40" post.

The N-20 firebox is fabricated from 3/16" (7 ga.) thick steel and is all-welded, not bolted.  All N Series designs include integral die-formed flanges to retain ashes and to reinforce the firebox from heat warpage.

N Series grill cooking grates are fabricated using 5/8" dia. steel bars for support handles, and 1/2" dia. steel bars for the cooking surface and is welded on both sides.  The cooking grate is permanently incorporated into the firebox and cannot be removed.  All cooking grates are finished with high temp non-toxic black enamel paint.  All grate handle grips are 1/8" x 1/2" coiled steel bar.  All grate bars are welded on both sides.

OPTIONAL: Bolt on utility shelf for all N Series charcoal grills: Model S3/G galvanized on N/G-20 and N/G-24.

OPTIONAL: Model N/G-20 grill can be built to incorporate a hot plate measuring 8" x 15".  This replaces the grate bars in that portion of the total grate (becomes Model N/G-20/HP). Not available on the N/G-24.

OPTIONAL: Hinged steel grill cover on Model N-20 and N-24 (painted or galvanized finish).  Model S3 shelf cannot be used with cover.

OPTIONAL BASES: To replace the standard embedded post.
Portable disc base (B4) is not galvanized.
Bolt down/surface mount base post (B3 or B3G galvanized).  Anchor bolts are not included - use Model ANC1-4 Concrete Anchor Kit.

OPTIONAL: Model N-20 painted grill and Model N/G-20 galvanized grill can be equipped with a stainless steel cooking grate (to replace the standard grate).

 California's Proposition 65.

You May Also Like

Picnic Tables

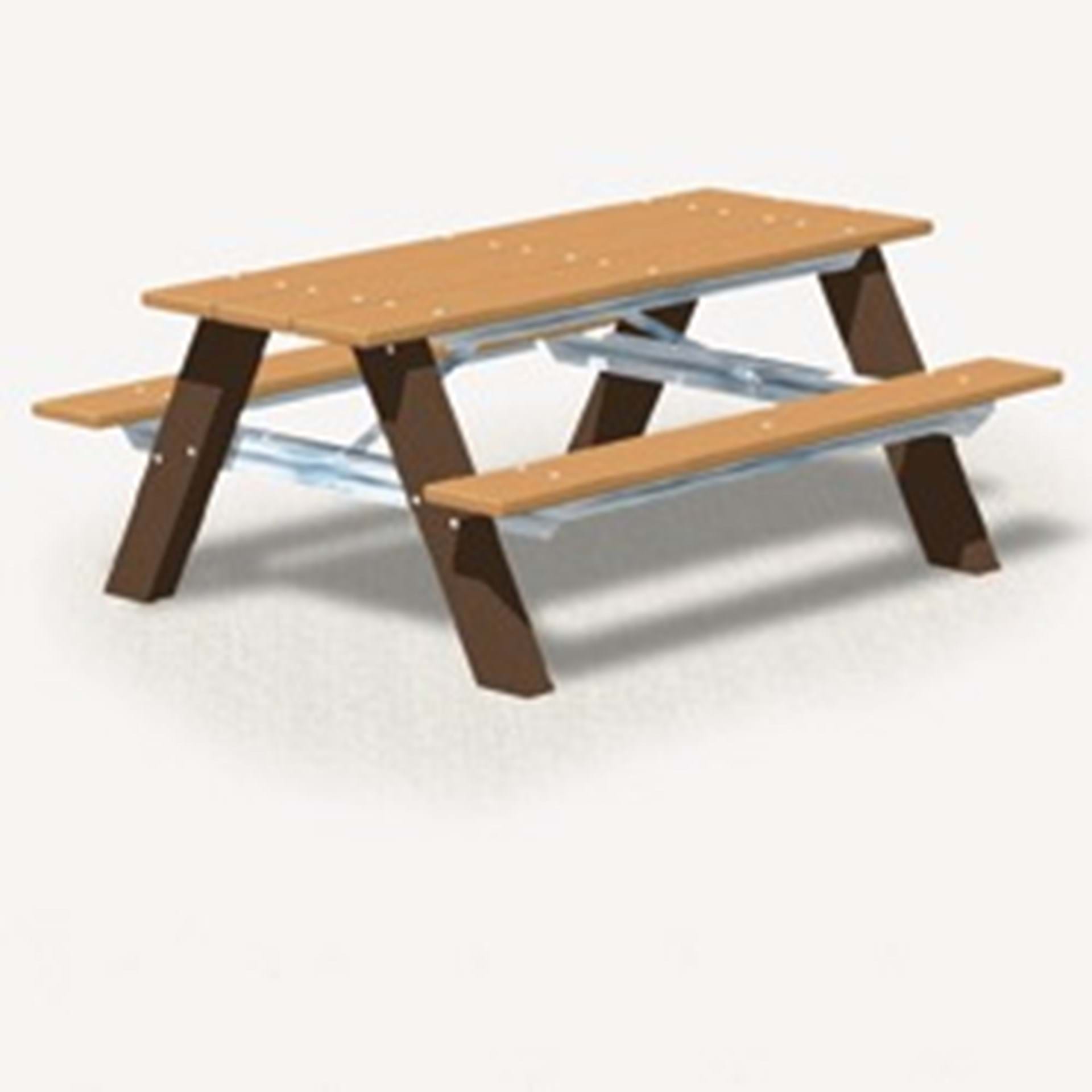

AT Series - Traditional A-Frame Picnic Table - Using Recycled Plastic
