Pilot Rock RJ Thomas Mfg. Co.

PQT3B Series Frame Kit - Accessible Square Pedestal Picnic Table. Use With Contour Steel Bench Seats

Please make the following configuration choices:

Installation / Mount

Choose how you plan to install the product.

Frame Finish

Select the finish you want on the frames.

Frame Kit Size Options

Buy just the frame kit. Then provide your own top/seat/slat material from a local source.

($416.00)

Model PQT3B-4 Pedestal Picnic Table Frame Kits provide a secure, permanent location plus a square seating pattern that fully utilizes the table top: better visual contact, more conducive to conversation, an ideal game or craft table, good for children or adults.  The single, central support post simplifies maintenance under and around table.

Model PQT-4 table frames have been adapted for wheelchair accessibility.  By removing one or more arm/seat structures the side of the table is opened to provide wheelchair access.

Specifications:

Model PQT3B-4 Picnic Table Frame Kits are designed for a 48" square top with three 45" wide contour bench seats (seats not included).  Table offers 32" table height, 20" seat height (nominal dimensions).

FRAME KIT:  Supported by one central, massive 5-3/8" sq. steel post.  Seat arms are 3-1/2” dia. steel tube and are designed to resist lateral torsion and deflection.  Assembly points all fasteners to inside of central post so carriage bolt nuts are not exposed.  Installation of top prevents access to inside of post.  Embedded installation is standard.  Model PQT3B/P-4 frame kits have a 3/8” X 16” sq. steel bolt down base plate (anchor bolts not included).

FINISH:  Standard finish: hot dip galvanized after fabrication for maximum protection from elements.  Or choose a powder coat finish (in place of galvanized finish) in your choice of color.




You May Also Like

Charcoal Grills
ASWS-20 Series Accessible Grill - Stainless Steel
ASWS-20 Series Accessible Grill - Stainless Steel
SKW: ASWS-20
This stainless steel grill meets the ADA guidelines for acess and operation.
Campfire Rings

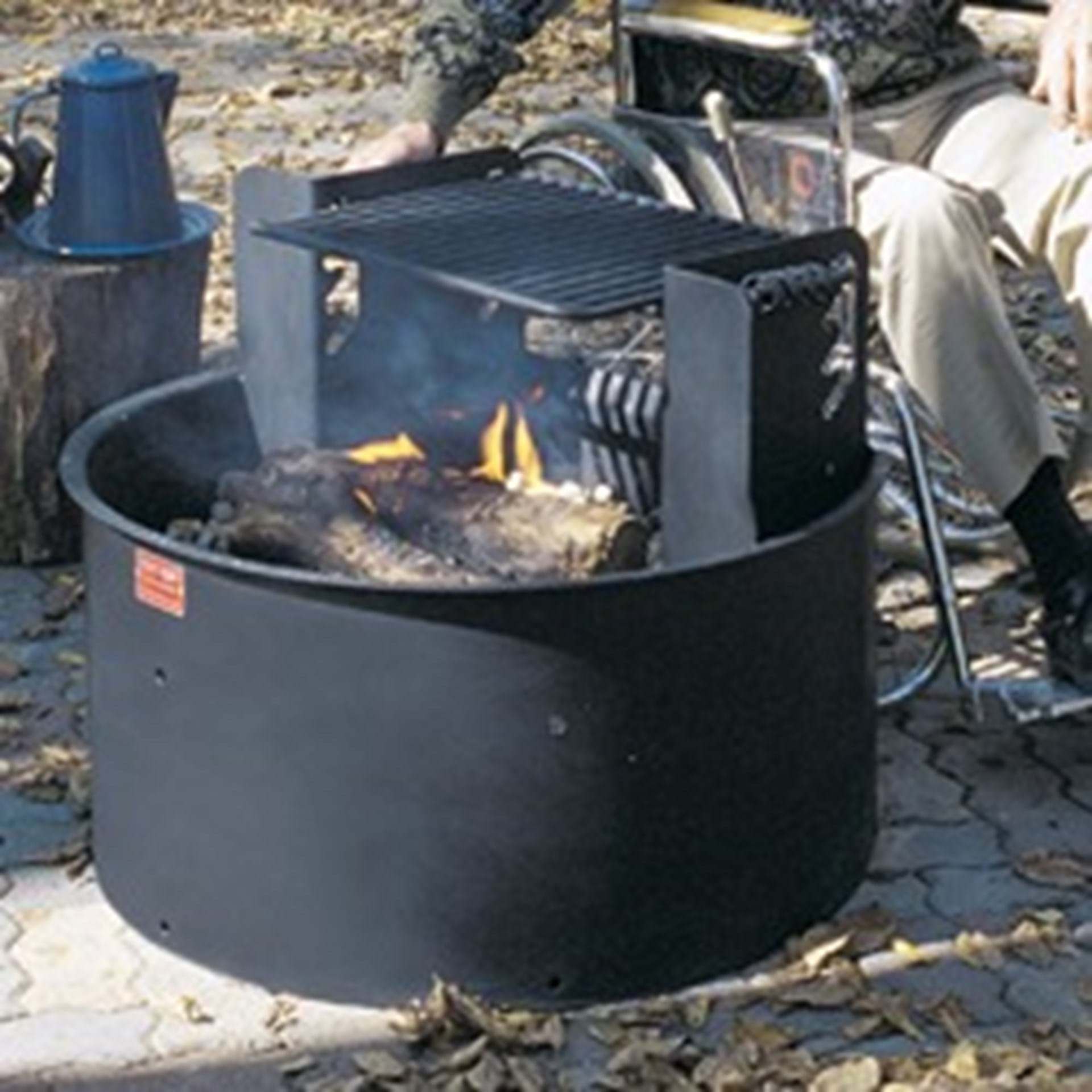

M-32/17 Accessible Campfire Ring
