Pilot Rock RJ Thomas Mfg. Co.

Snow Load/ Extreme Load Square Frame Accessible Picnic Table - WPTS Series

Please make the following configuration choices:

Frame Finish

Select the finish you want on the frames.

MATERIAL & LENGTH CHOICES

Select the Material and Length you want for this product.

($1,470.00)
($1,712.00)
($1,497.00)
($1,787.00)
  • Price Per Unit Starts At:
    $1,470.00

Model WPTS Picnic Tables are accessible to wheelchairs at both ends.  These tables have a square frame which provides the look of a pedestal table but are portable for site flexibility.  These tables are designed and constructed specifically to withstand high elevation snow and other extreme loads when equipped with our V-Type expanded steel or H-Type perforated steel top/seats.  When the snow melts, these tables will be ready for use!

Snow Load Rated Tables Specifications:

Model WPTS Tables utilize a patented innovative design evolution of our popular APT Series double pedestal tables.  The tables are accessible to wheelchairs at both ends.  Full length seats offer full capacity seating which is an advantage over extended top or side access tables.

LOAD RATING:  The WPTS tables have been designed to withstand high elevation snow loads and have been tested and rated by an independent lab and a state university for snow and other extreme weight loads up to 1420 lbs. per sq. ft.  To achieve those ratings, the steel frame tables must be equipped with our V-Type expanded steel or H-Type perforated steel top and seat structures.  Remember...the rating is Per Square Foot NOT per table!

Model WPTS 8 ft table offers clearances under the table top of 30" wide, 27" high, and 24" total knee and toe clearance (19" knee + 5" toe).  Nominal seat height is 18". The 8 ft. tables are ADA COMPLIANT.

FRAME:  All welded 3" x 6" (nom.) x 1/8" wall rectangular steel tube for top and seat supports, connected with 2-1/2" (nom.) x 1/8" wall square steel tube.  Frames are welded into a single piece for strength and easy assembly.  All 3/8” dia. galvanized carriage bolt fasteners.

FINISH:  Standard finish: hot dip galvanized after fabrication.  Or choose a powder coat finish (in place of galvanized finish) in the color of your choice.

LENGTH:  6 or 8 ft. long. Note: the 8 ft. table is compliant with ADA guidelines for knee and toe clearances.  The 6 ft. table is slightly short of the total knee+toe clearance required to be called "compliant".

TOP/SEAT MATERIAL:  Our V-Type 3/4-#9 expanded metal or H-Type 14 ga. perforated steel  thermo-plastic coated in your choice of color.  See Material Options.

You May Also Like

Campfire Rings

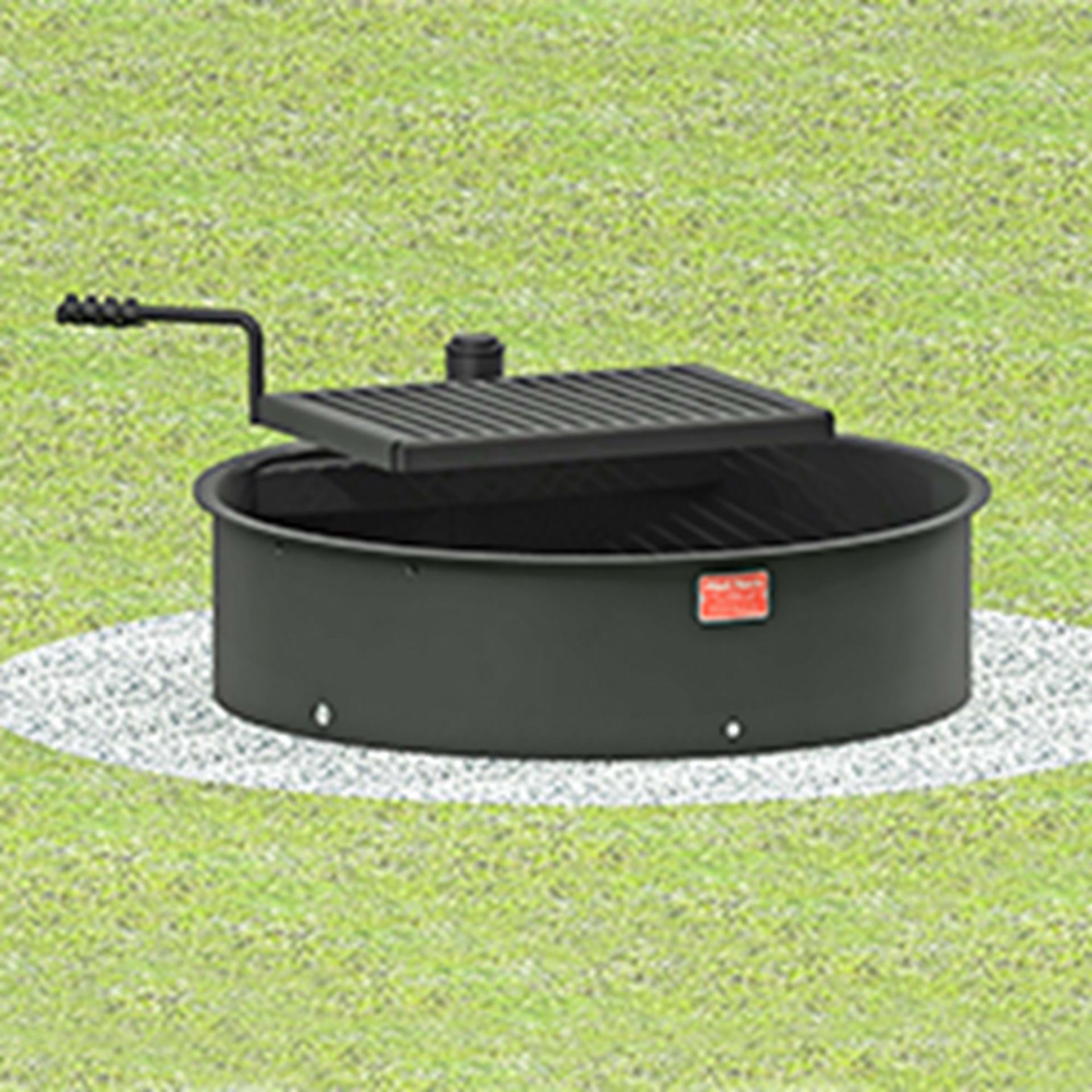

FSW/SL-30 SNOW LOAD Rated Swivel Grate Campfire Ring
