Pilot Rock RJ Thomas Mfg. Co.

XTX Series Utility Table - Using Aluminum

Please make the following configuration choices:

Frame Finish

Select the finish you want on the frames.

MATERIAL & LENGTH CHOICES

Select the Material and Length you want for this product.

($418.00)
($509.00)
($672.00)
($418.00)
($509.00)
($672.00)

Model XTX Utility Table is a durable and versatile design variation of our XT Series Picnic Tables.

Specifications:

Table top is 30" high (nom.).  The wide stance frame with formed and flattened feet provide a stable portable table.  The frame feet include 9/16" dia. holes for anchors (not included) for a secure surface bolt down installation.

FRAME KIT: All welded 2-3/8" OD steel pipe end frames (2.375" OD, 11 ga. wall, 2" ID nom. pipe specifications).  Top mounting brackets are 2" x 2" x 10 ga. die formed steel angles.  Frames supported by diagonal braces of 1-5/16" OD steel pipe attached to steel center channel.  Includes all 3/8" dia. galvanized carriage bolt fasteners.

FINISH: Standard finish: hot dip galvanized after fabrication.  Or choose a powder coat finish (in place of galvanized finish) in your color choice.

LENGTH: Tables can be 6, 8 or 10 ft. long.

TABLE MATERIAL: 2” X 10” (nom.) aluminum planks, top is pre-assembled at the factory.  Aluminum is available with clear anodized finish or in your color choice of powder coat paint finish.  See Material Options.

OPTIONAL: Model ANC3-4 Anchor Kit for surface mounting of 6' and 8' tables OR Model ANC3-6 Anchor Kit for surface mounting of 10' tables.

You May Also Like

Accessories
Model ANC3-4 Anchor Kit
Model ANC3-4 Anchor Kit
SKW: ANC3-4
Four 3/8" x 3" Concrete Screw Anchors
Trash & Recycling Receptacles

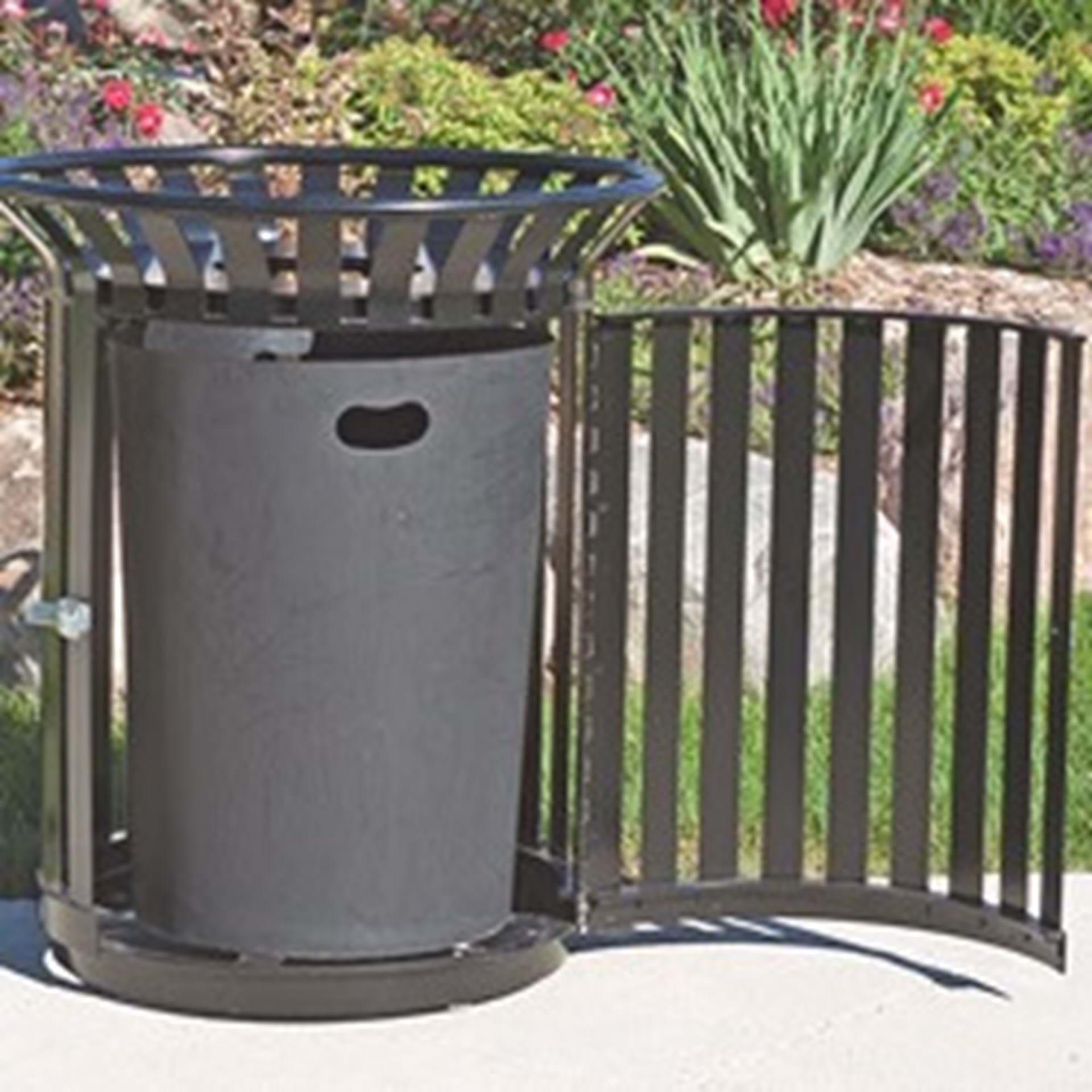

Round Receptacle - Side Door, Steel Strap
