Pilot Rock RJ Thomas Mfg. Co.

Riverview Bench - All Steel Flat Seats

Please make the following configuration choices:

Installation / Mount

Choose how you plan to install the product.

Frame Finish

Select the finish you want on the frames.

MATERIAL & LENGTH CHOICES

Select the Material and Length you want for this product.

($945.00)
($1,082.00)
($1,221.00)
($890.00)
($1,014.00)
($1,139.00)
($945.00)
($1,082.00)
($1,221.00)
($945.00)
($1,082.00)
($1,221.00)
  • Price Per Unit Starts At:
    $890.00

The B70 Series streetscape and park bench design includes a large steel tube frame structure with wider curves for a simple, clean and comfortable appearance.  The integral armrests make both the contour and flat benches an attractive site feature.

Specifications:

FRAME: All B70 Series frames are a single piece welded unit using 2-3/8” OD steel pipe for leg posts and armrest.  Seat attachment brackets are 7 ga. steel angles.

INSTALLATION: Models B76 and B78 are surface mounted and include bolt holes in the frame base plate.  Optional: Model ANC3-4 Anchor Kit.  Models B77 and B79 are designed for embedded post installations.

FINISH: Frames are powder coated in your color choice.

LENGTH: Contour style or flat designs are available in 4, 6 and 8 ft. lengths.

SEAT & BACK MATERIALS:
Expanded Steel is 3/4-#9 expanded steel (diamond shaped holes) with a thermoplastic coating.
Perforated Steel is 14 ga. perforated steel (round holes) with a thermoplastic coating.

Cut Steel Plate is 10 ga. laser cut steel plate with a thermoplastic coating.
Steel Strap is heavy gauge steel straps welded into a single piece seat with a powder coat finish.
All coatings are available in a variety of color choices.
  See Material Options.

OPTIONAL: Cover Caps, two-part aluminum caps to cover bottom of frame post. You will need (4) #CC-1 cover caps per bench. The caps will be powder coated to match the frame finish.  Click here to add Cover Caps to your Quote Cart.

You May Also Like

Accessories
Cover Cap for Bench, Table, Bike Rack Posts and More.
Cover Cap for Bench, Table, Bike Rack Posts and More.
SKW: CC
Cover Caps add a finishing touch to base posts or frame legs.
Accessories

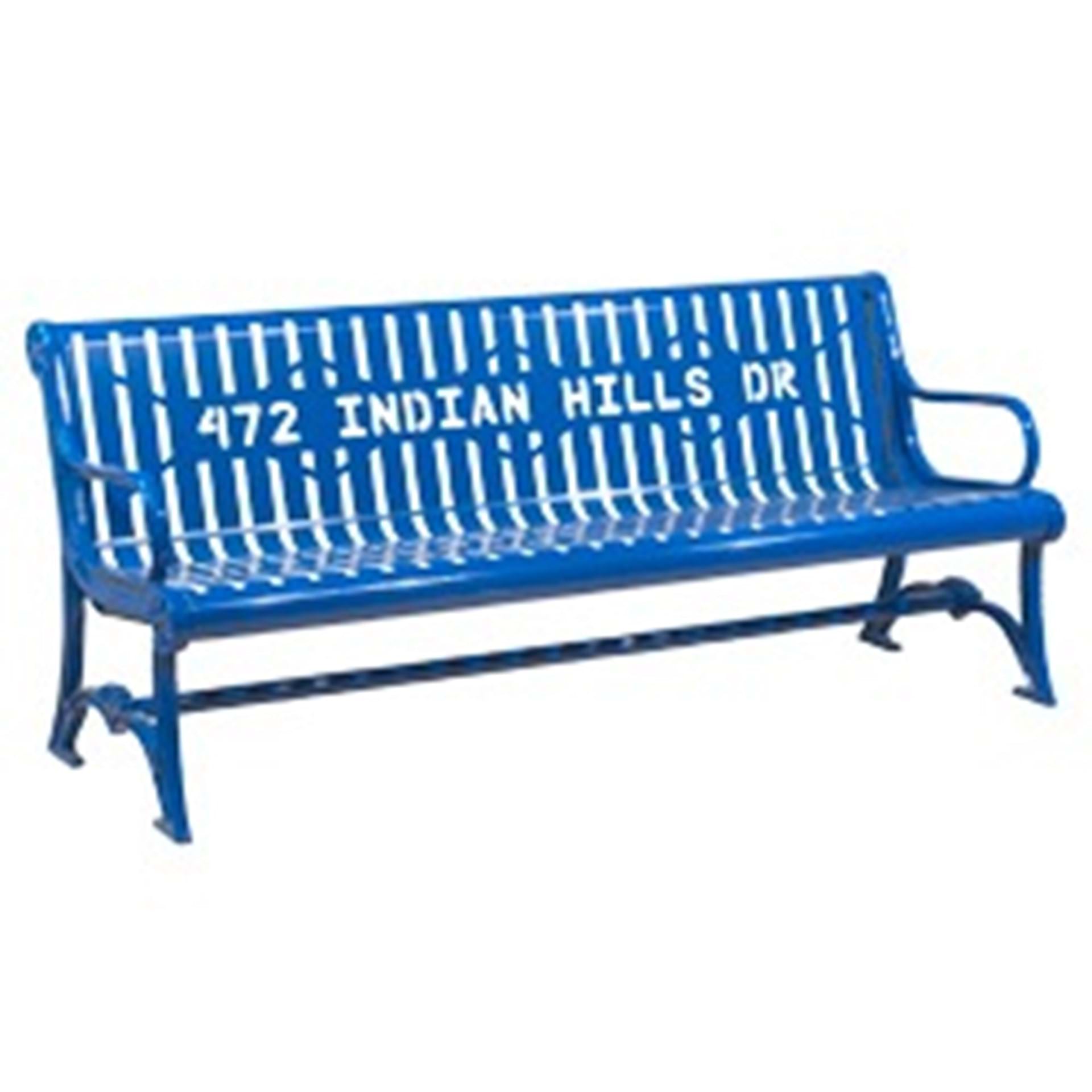

Custom Signage  - Cut or Punched into Steel Products.
