Pilot Rock RJ Thomas Mfg. Co.

Square Frame Bench -Flat - A clean square cut frame design.

Please make the following configuration choices:

Installation / Mount

Choose how you plan to install the product.

Frame Finish

Select the finish you want on the frames.


Select the Material and Length you want for this product.

  • Price Per Unit Starts At:

The Model B130 Flat Square Frame Bench offers a clean cut square end frame design with inlaid seat planks.


FRAMES: Rugged all steel, welded component construction.  End frames are 2 in. x 2 in. x 11 ga. square steel tube.  Seat framework is 1 in. x 2 in. x 14 ga. rectangular steel tube, with formed steel channel reinforcements in the seat.  All open ends are welded closed with steel end caps.

INSTALLATION: Model B130 is a flat bench. Surface mount installation only (anchor bolts not included).  Use Model ANC3-4 Anchor Kit.

FINISH: All steel frame components have a powder coat finish in your color choice.

LENGTH: B130 benches are available in 4, 6 or 8 ft. lengths.

SEAT & BACK MATERIALS: Seat and back inlay materials: 100% recycled plastic in your choice of color.  Seat planks are 2 x 4 in. (nom.) and backrest planks are 1 x 4 in. (nom.).  All inlaid planks are installed in the framework at the factory.  Only the assembly of end frames to the seat/backrest components is required.  See Material Options.

For matching picnic tables, see Model T700 Square Frame Tables.

You May Also Like

Model ANC3-4 Anchor Kit
Model ANC3-4 Anchor Kit
Four 3/8" x 3" Concrete Screw Anchors
Picnic Tables

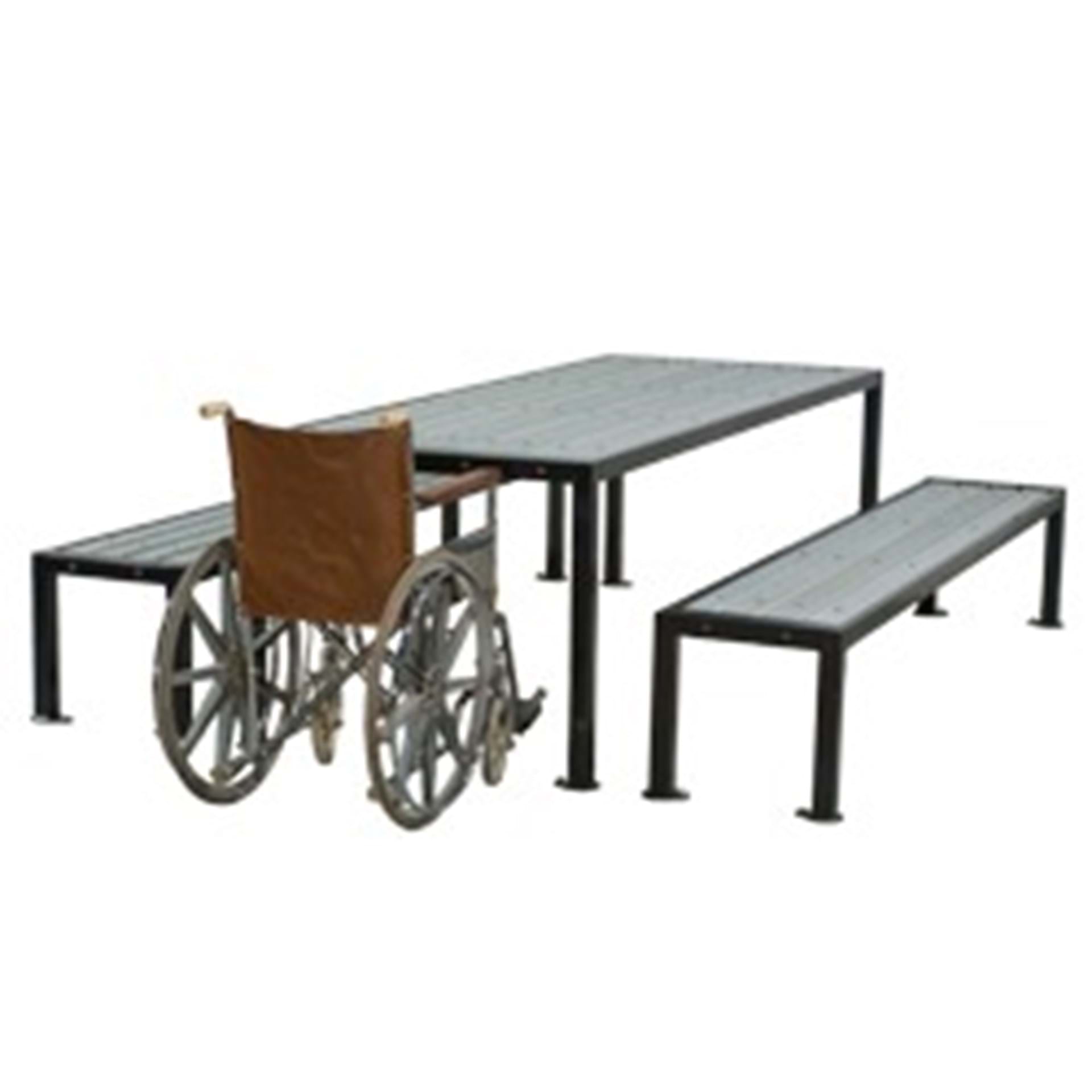

Square Frame Picnic Tables - T700 Series
