Pilot Rock RJ Thomas Mfg. Co.

BTUG Series Picnic Table Frame Kit - Lighter Duty - BUY NOW

Please make the following configuration choices:

Frame Kit Size Options

Buy just the frame kit. Then provide your own top/seat/slat material from a local source.

($160.00)
($160.00)
($160.00)

Model BT Picnic Table Frame Kits combine pre-galvanized steel tube frames for maintenance-free performance with the economy of an un-welded, bolt together design.

Specifications:

Model BTUG Picnic Table Frame Kits feature our nontip, nontrip, walk through design.  The tables won’t tip even if all persons sit on one side.  Easy walk through access.  “Skid” design permits movement without damage to turf.

Table offers 30" nom. table height; 18" nom. seat height.

FRAME KIT:  Bolt-together 1-5/8” OD x 12 ga. pre-galvanized steel pipe end frames.  Top/seat mounting angles are formed from pre-galvanized steel.  The table structure is reinforced with two diagonal braces of 1-5/16" OD pre-galvanized steel tube.  All 3/8" dia. galvanized carriage bolt fasteners.

LENGTH: This frame kit can be used to build a table 4, 6 or 8 ft. long.

TOP and SEAT MATERIAL: Lumber is NOT included. Select (5) pieces of 2x10" (nominal) size lumber from a local supplier.

You May Also Like

Charcoal Grills

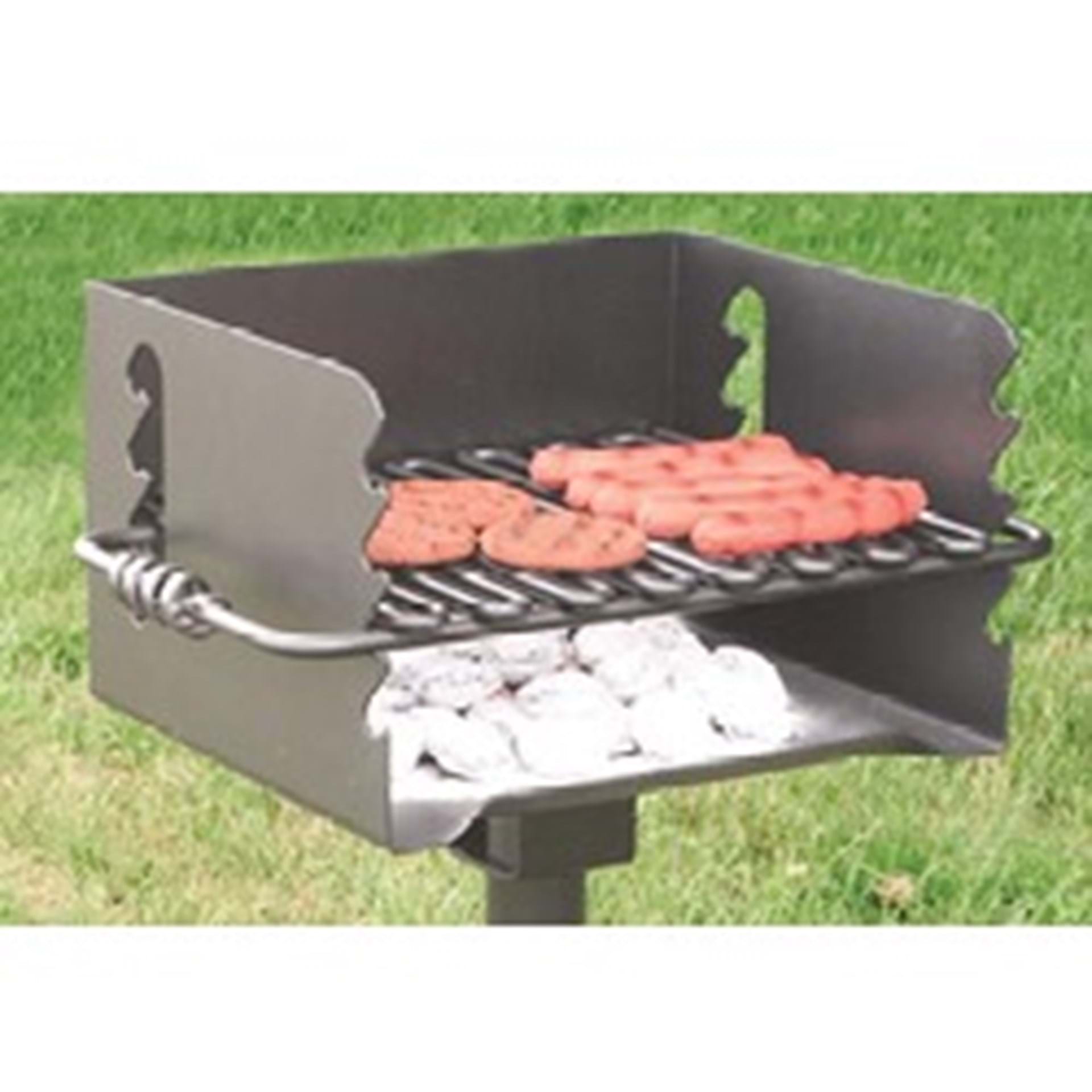

CBP-135 Series Charcoal Grill - BUY NOW
