Pilot Rock RJ Thomas Mfg. Co.

Grey Creek Bench B30 - Contour Seats

Please make the following configuration choices:

Installation / Mount

Choose how you plan to install the product.

Frame Finish

Select the finish you want on the frames.

MATERIAL & LENGTH CHOICES

Select the Material and Length you want for this product.

($743.00)
($1,042.00)
($1,042.00)
($964.00)
($1,399.00)
($1,632.00)
  • Price Per Unit Starts At:
    $743.00

The B30 Series streetscape and park benches provide rugged welded steel component frame structures, offering a wide-surface armrest made with flat steel plate.

BUDDY BENCH: The B32 and B33 Grey Creek Series Contour Benches with 100% recycled plastic seat timbers can be transformed into a durable and “green” Buddy Bench by engraving your Buddy message into the recycled plastic timbers. Add the option for resin filled letters to really make your message pop with your choice of 10 colors of plastic.

Specifications:

FRAME: All B30 Series frames are one-piece welded fabrication using 3/8” thick x 2-1/2” wide steel bar.  All end frames have circular armrests for improved accessibility and comfort.  Center Frame: 6 ft. benches with recycled plastic and all 8 ft. benches will include a third center support frame without an armrest.

INSTALLATION: Models B30 and B32 are surface mounted and include bolt holes in the frame foot.  (Anchor bolts not included).  Models B31 and B33 are designed for embedded post installation.

FINISH: Frames can be hot dip galvanized after fabrication.  Or select our powder coated paint finish in your color choice.

LENGTH: Contour style or flat designs available in 4, 6 or 8 ft. lengths.

SEAT & BACK MATERIALS: Seat timbers are 3" x 4" (nom.) colorful 100% recycled plastic, or construction heart redwood.  See Material Options.

Indonesian Balau Wood is no longer available. Our supply has been depleted and it is cost prohibitive to replace.

OPTIONAL: Custom engraved personalization on recycled plastic, or recessed plastic laminate plaques are available on lumber and recycled plastic timbers.  See Accessories.

OPTIONAL ANCHOR KITS:


 California's Proposition 65.

You May Also Like

Accessories
Model ANC1-4 Anchor Kit
Model ANC1-4 Anchor Kit
SKW: ANC1-4
Four 1/2" x 3" Concrete Screw Anchors
Accessories

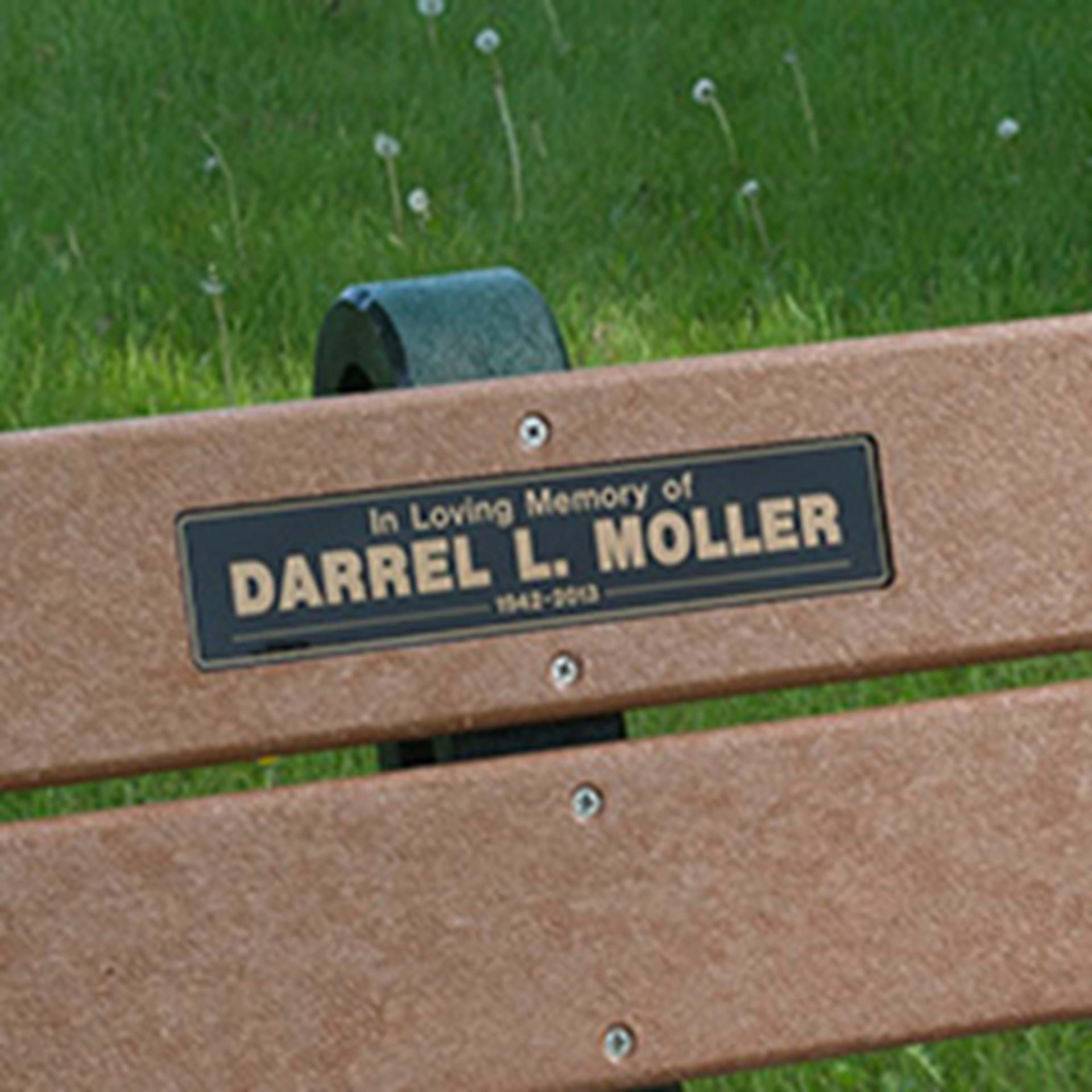

Plaques for Park Benches
Plaques for Park Benches
SKW: ACC::
Customize your bench with Laminate or Cast Metal Plaques.
Trash & Recycling Receptacles

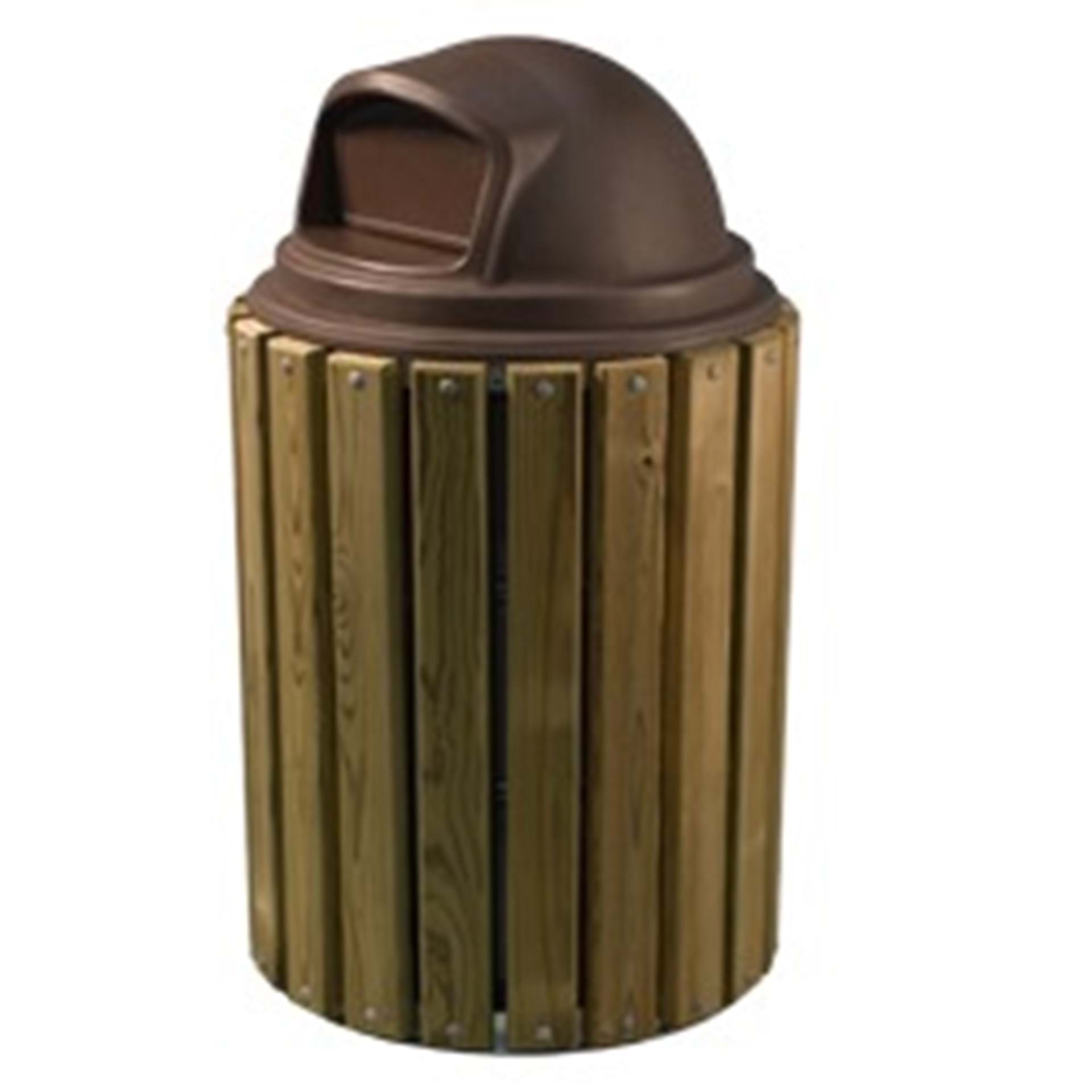

Round Trash and Recycling Receptacles - TRH Series
