Channel Park Bench - Using 2x10 Expanded Steel
The Channel Bench is designed to be stronger and more stable with a simple, clean design. The benches are available with stationary and portable installation options.
FRAME: All welded steel frame construction: seat/back support channel is die-formed from 1/8" thick (11 ga.) steel; frame posts and portable foot are fabricated from 2-3/8" OD steel pipe.
FINISH: Hot dip galvanized finish after fabrication maximizes protection from the elements. Or select a powder coat paint finish in your color choice.
INSTALLATION: Model PCXB is portable/surface mount so it can sit on the ground or be anchored to a hard surface. The frame foot includes 9/16” diameter holes for anchor bolts (not included). Model SCXB is stationary/embedded mount with frame posts in concrete footings.
LENGTH: Channel Park Benches with expanded steel can be 4, 6, 8, 10 or 16 feet long.
SEAT & BACK MATERIALS: 2" x 10" (nom.) wide thermo-plastic coated expanded steel planks. See Material Options.

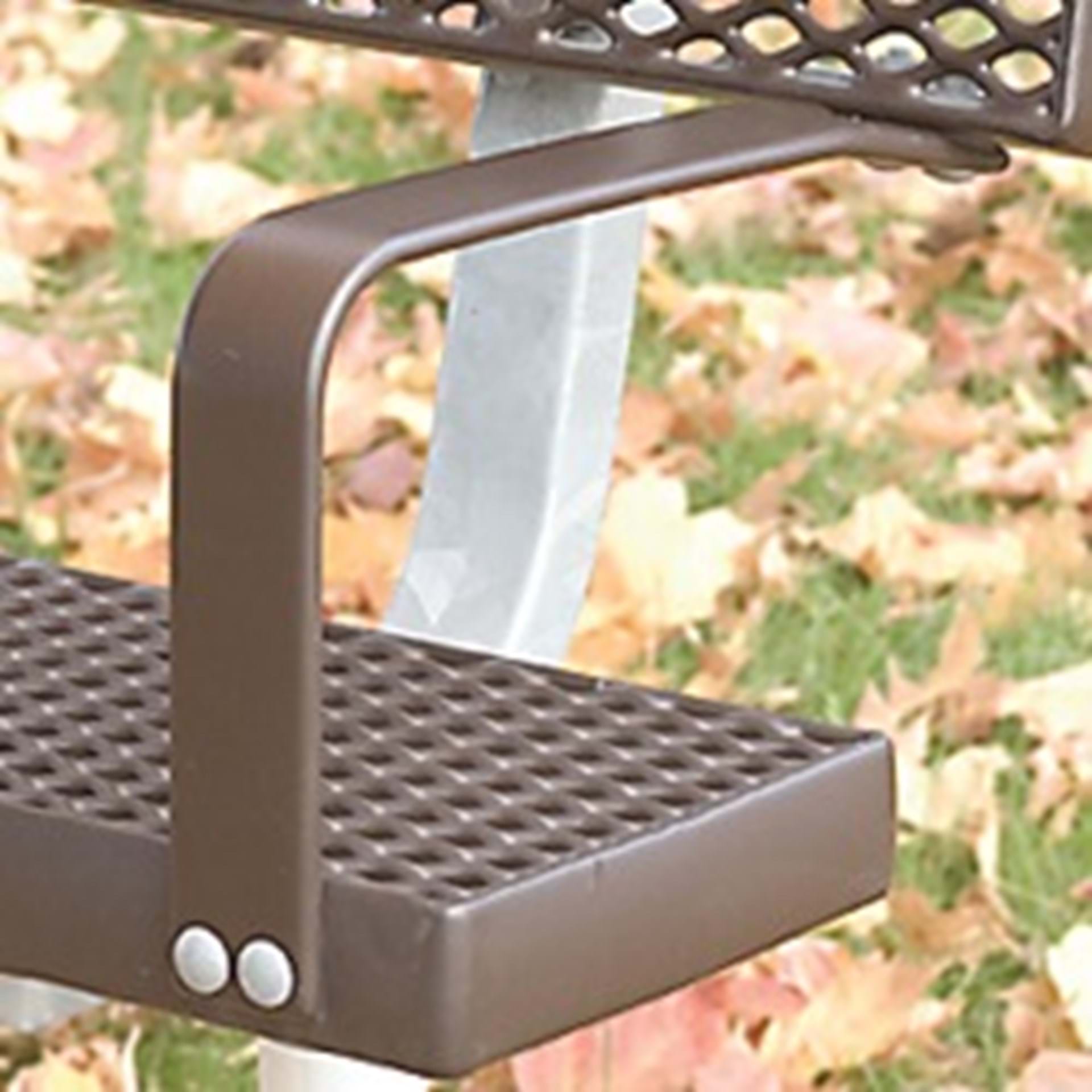

OPTIONAL: Armrests can help make bench more accessible. See Armrests for Park Benches.
OPTIONAL: For PCXB surface mount benches use Model ANC3-4 Anchor Kit. Use Model ANC3-6 Anchor Kit for 10' benches. For 16' benches, two Model ANC3-4 Anchor Kits will be required.

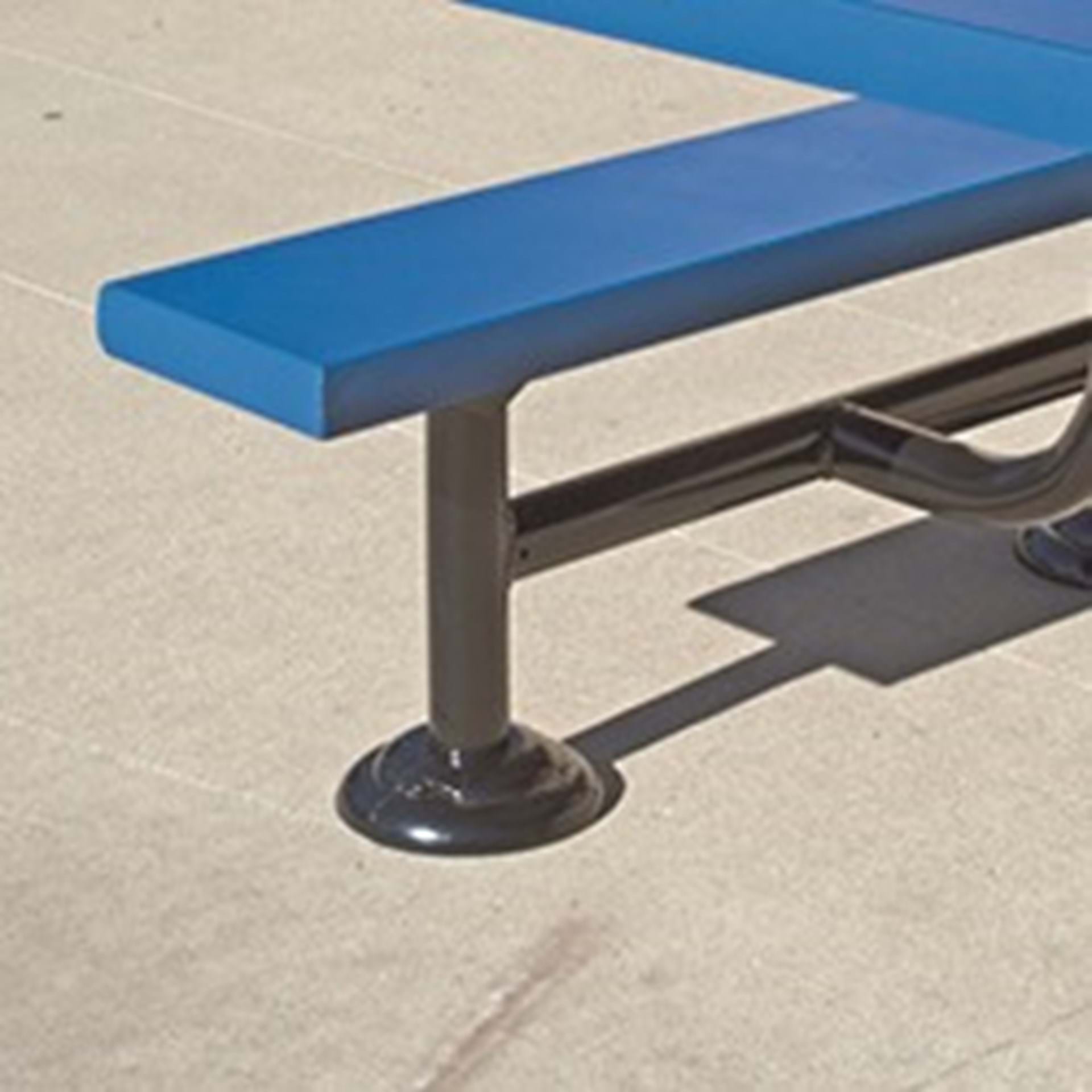

OPTIONAL: Cover Caps, two-part aluminum caps to cover bottom of frame post for Model SCXB benches with embedded post. Depending on the length of your bench you may need 2, 3, 4 or 5 cover caps per bench. The natural cast aluminum finish will match a hot dip galvanized frame finish. Or the caps will be powder coated to match the frame finish. Click here to add Cover Caps to your Quote Cart.
