Channel Park Bench - Using 2x12 Expanded Steel

Please make the following configuration choices:

Installation / Mount

Choose how you plan to install the product.

Frame Finish

Select the finish you want on the frames.


Select the Material and Length you want for this product.

  • Price Per Unit Starts At:

The Channel Bench is designed to be stronger and more stable with a simple, clean design.  The benches are available with stationary and portable installation options.


FRAME: All welded steel frame construction: seat/back support channel is die-formed from 1/8" thick (11 ga.) steel; frame posts and portable foot are fabricated from 2-3/8" OD steel pipe.

FINISH: Hot dip galvanized finish after fabrication maximizes protection from the elements.  Or select a powder coat paint finish in your color choice.

INSTALLATION: Model PCXB is portable/surface mount so it can sit on the ground or be anchored to a hard surface.  The frame foot includes 9/16” diameter holes for anchor bolts (not included).  Model SCXB is stationary/embedded mount with frame posts in concrete footings.

LENGTH: Channel Park Benches with expanded steel can be 4, 6, 8, 10 or 16 feet long.

SEAT & BACK MATERIALS: 2" x 12" (nom.) wide thermo-plastic coated expanded steel planksSee Material Options.

OPTIONAL: Armrests can help make bench more accessible.  See Armrests for Park Benches.

OPTIONAL:  For PCXB surface mount benches use Model ANC3-4 Anchor Kit.  Use Model ANC3-6 Anchor Kit for 10' benches.  For 16' benches, two Model ANC3-4 Anchor Kits will be required.

OPTIONAL: Cover Caps, two-part aluminum caps to cover bottom of frame post for Model SCXB benches with embedded post.  Depending on the length of your bench you may need 2, 3, 4 or 5 cover caps per bench. The natural cast aluminum finish will match a hot dip galvanized frame finish. Or the caps will be powder coated to match the frame finish.  Click here to add Cover Caps to your Quote Cart.

You May Also Like

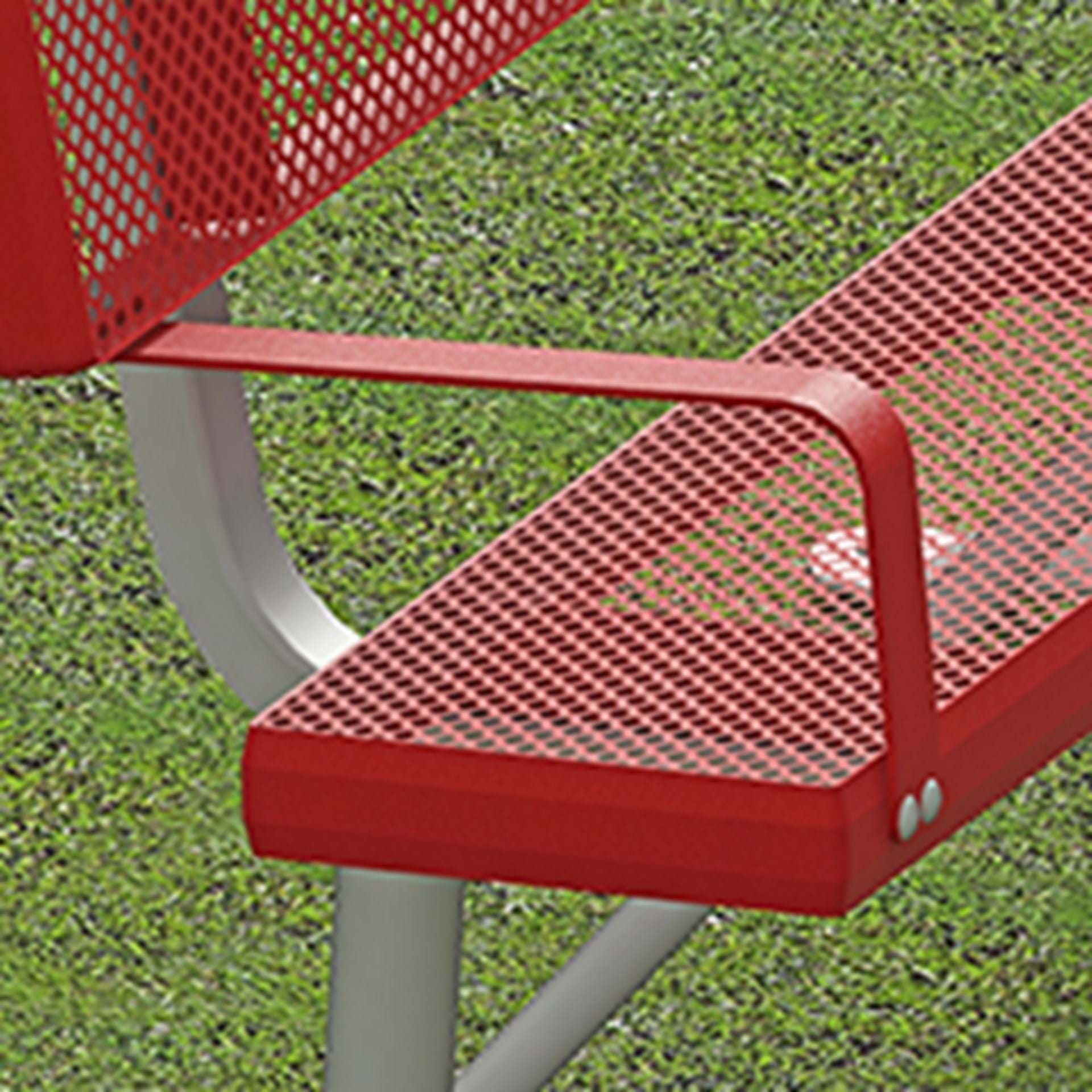

Armrests - Model AR-9 -for CXB Channel Benches
